EMP Series

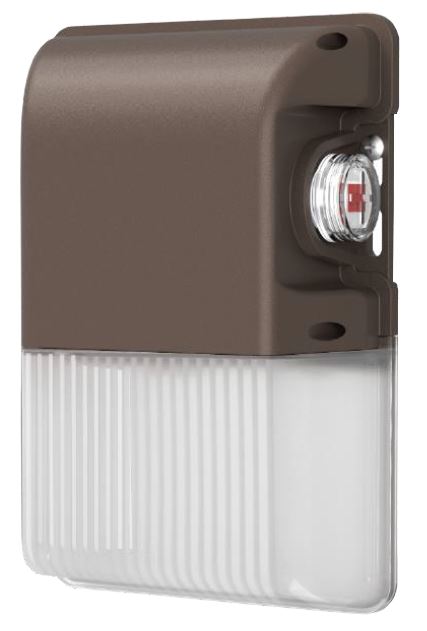

The NHL-EMP3 wall pack is an economical solution for outdoor perimeter and area lighting. Both color selectable and power adjustable and with a built-in photocell, a die cast aluminum housing and a frosted polycarbonate lens. The NHL-EMP3 is a versatile and durable wallpack ideal for use over man doors. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID wall packs.
- Product SKU: NHL-EMP3
- Category: Outdoor, Wall Mount Exterior
- Field selectable 3000k (warm white), 4000k (neutral white), and 5000k (cool white) color temperatures.*
- Long-life LEDs provide at least 70% of initial lumen output (L70) for> 156,000 hours of operation, and at least 90% of initial lumenoutput (L90) for > 47,000 hours of operation.*
- LED chromaticity based on < 5-step ANSI quadrangles.
- LED color maintenance < 0.003 chromaticity shift ( u’v’) over the initial 6,000 hours of operation.
- Provides a range of 1,900 to 3,300 nominal lumens and 126 to 145 nominal lumens per watt (lm/W).
- 0-10vdc dimming drivers are standard.
- Universal 120-277 AC voltage (50-60Hz) is standard.
- Power factor > 0.90.
- Total harmonic distortion < 20%.
- Color rendering index (Ra) > 80.
- Integral photocell is standard.
- Cast aluminum housing with dark bronze, powder coat finish.
- Diffused polycarbonate lens.
- One ½” NPT threaded opening.
- Easy installation in new construction or retrofit applications.
- cULus listed for wet locations in ambient temperatures from
-20°C to 50°C (-4°F to 122°F). - IP65 rated for ingress protection.
Complies with FCC Part 15, class B.
Surge protection = 4kV. - 5-year warranty of all electronics and housing.
- Field selectable 3000k (warm white), 4000k (neutral white), and 5000k (cool white) color temperatures.*
- Long-life LEDs provide at least 70% of initial lumen output (L70) for> 156,000 hours of operation, and at least 90% of initial lumenoutput (L90) for > 47,000 hours of operation.*
- LED chromaticity based on < 5-step ANSI quadrangles.
- LED color maintenance < 0.003 chromaticity shift ( u’v’) over the initial 6,000 hours of operation.
- Provides a range of 1,900 to 3,300 nominal lumens and 126 to 145 nominal lumens per watt (lm/W).
- 0-10vdc dimming drivers are standard.
- Universal 120-277 AC voltage (50-60Hz) is standard.
- Power factor > 0.90.
- Total harmonic distortion < 20%.
- Color rendering index (Ra) > 80.
- Integral photocell is standard.
- Cast aluminum housing with dark bronze, powder coat finish.
- Diffused polycarbonate lens.
- One ½” NPT threaded opening.
- Easy installation in new construction or retrofit applications.
- cULus listed for wet locations in ambient temperatures from
-20°C to 50°C (-4°F to 122°F). - IP65 rated for ingress protection.
Complies with FCC Part 15, class B.
Surge protection = 4kV. - 5-year warranty of all electronics and housing.
