NHL-SBST
SPECIFICATION FEATURES
Construction
Strong and durable die -cast aluminum case.

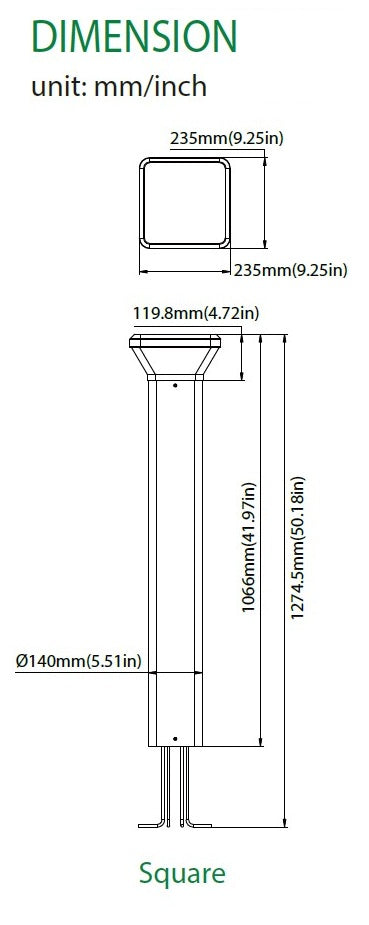

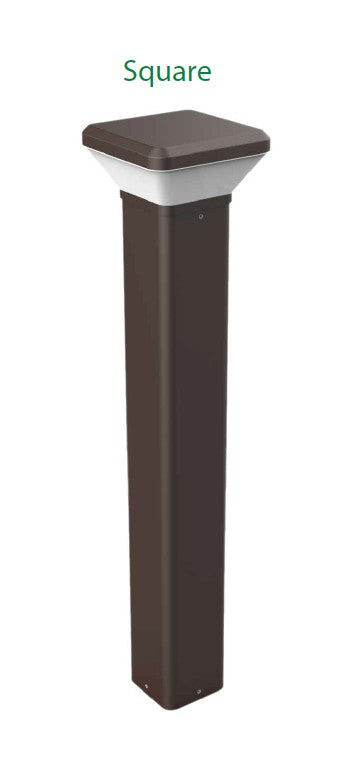

Square Appearance for a good decorative effect, sized at 3.5 ft height.
Robust ground cage pre-buried installation.
360-degree surround illumination.
Optics
Light engines are available in a color-selectable version; the CCT can be changed to three CCTs (3000K, 4000K, 5000K).
Scalable Lumen Packages from 1,400 to 3,200 Lumens with efficacy up to 150lm/W.
Milky lens with a soft visual comfort lighting.
Transparent lens with a bright lighting effect.
Electrical
Universal 120-277VAC input voltage.
Wattage selectable: 24W, 19W, 14W, 10W.
0-10V dimming standard for a dimming range of 100% to 10%.
PF >90%, THD <20%.
Operating Temperature Range: -40°C to 45°C (-40˚F to 113˚F).
Note: Operating with emergency battery temperature range: 5°C to 45°C (+41˚F to 113˚F).
Controls
Optional Emergency Battery.
Lifespan
Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Warranty
Five-year limited warranty.
Certifications
UL cUL wet location listed.
Note: Actual performance may differ as a result of the end-user environment and application. All values, measured under laboratory conditions at 25 degrees C to (+5 degrees C) specifications subject to change without notice.
SPECIFICATION FEATURES
Construction
Strong and durable die -cast aluminum case.
Square Appearance for a good decorative effect, sized at 3.5 ft height.
Robust ground cage pre-buried installation.
360-degree surround illumination.
Optics
Light engines are available in a color-selectable version; the CCT can be changed to three CCTs (3000K, 4000K, 5000K).
Scalable Lumen Packages from 1,400 to 3,200 Lumens with efficacy up to 150lm/W.
Milky lens with a soft visual comfort lighting.
Transparent lens with a bright lighting effect.
Electrical
Universal 120-277VAC input voltage.
Wattage selectable: 24W, 19W, 14W, 10W.
0-10V dimming standard for a dimming range of 100% to 10%.
PF >90%, THD <20%.
Operating Temperature Range: -40°C to 45°C (-40˚F to 113˚F).
Note: Operating with emergency battery temperature range: 5°C to 45°C (+41˚F to 113˚F).
Controls
Optional Emergency Battery.
Lifespan
Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Warranty
Five-year limited warranty.
Certifications
UL cUL wet location listed.
Note: Actual performance may differ as a result of the end-user environment and application. All values, measured under laboratory conditions at 25 degrees C to (+5 degrees C) specifications subject to change without notice.
