NHL-RSS-DB
New Horizon Lighting’s Round Straight Steel Direct Burial pole is a quick ship and economical alternate to fiberglass and aluminum poles. Constructed of high strength carbon steel, with a durable polyester powder coat finish, and an enhanced coating to protect the pole below grade. Available in heights up to 25ft with a standard dark bronze finish. Optional custom color finishes also available, please consult factory.
- Product SKU: NHL-RSS-DB
- Category: Contractor Choice, Outdoor, Poles and Brackets

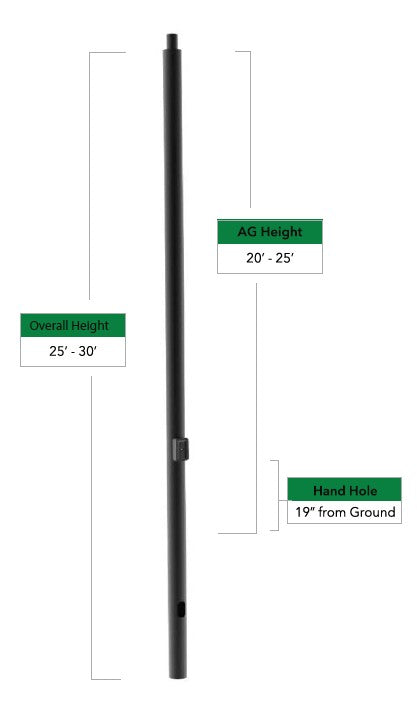

The RSS-DB direct burial round straight poles are constructed of high-strength carbon steel and designed for top-mounted luminaires. Poles are stocked in 20' and 25' lengths in a durable bronze finish. Poles include base plate cover and hand hole cover.
Construction
• Single piece welded shaft fabricated from ASTM-A 500 Grade B carbon steel with a guaranteed minimum yield strength of 46,000 PSI.
• Poles have a durable bronze polyester powder coat finish
Installation
• Pole includes reinforced cast-iron hand hole cover with ground screw, underground wiring access, drill holes with plugs, and top cap.
Warranty
• 1 Year limited warranty
The RSS-DB direct burial round straight poles are constructed of high-strength carbon steel and designed for top-mounted luminaires. Poles are stocked in 20' and 25' lengths in a durable bronze finish. Poles include base plate cover and hand hole cover.
Construction
• Single piece welded shaft fabricated from ASTM-A 500 Grade B carbon steel with a guaranteed minimum yield strength of 46,000 PSI.
• Poles have a durable bronze polyester powder coat finish
Installation
• Pole includes reinforced cast-iron hand hole cover with ground screw, underground wiring access, drill holes with plugs, and top cap.
Warranty
• 1 Year limited warranty
