NHL-EMP3 Series

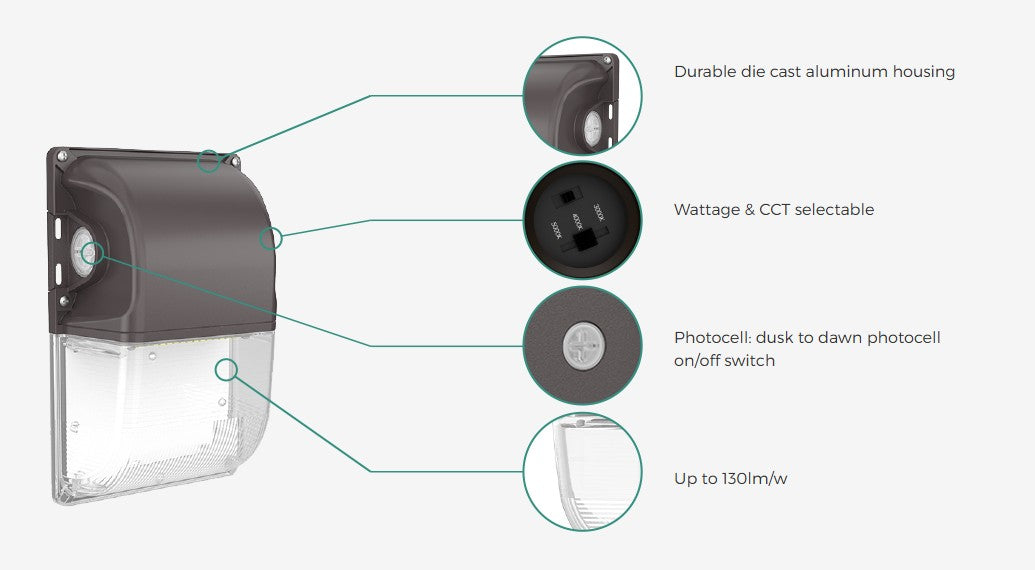

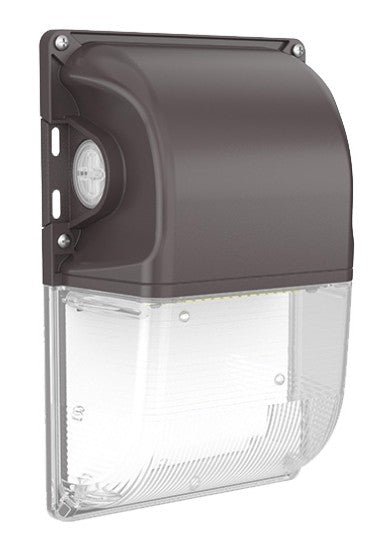

The NHL-EMP3 wall pack is an economical solution for outdoor perimeter and area lighting. Both color selectable and power adjustable and with a built-in photocell, a die cast aluminum housing and a frosted polycarbonate lens. The NHL-EMP3 is a versatile and durable wallpack ideal for use over man doors. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID wall packs.
- Product SKU: NHL-EMP3
- Category: Outdoor, Wall Mount Exterior
FEATURES AND SPECIFICATIONS
· Housing: ADC12 Aluminum Die Casting,
· Lens: Polycarbonate,
· Easy to install and operate.
Electrical
· High efficacy up to 140lm/W,
· AC120-277V, 0-10V dimming,
· CCT & Wattage Selectable,
· Surge Protection: L/N 2KV, L/N-P 2KV,
· Waterproof: IP65 rated.
Applications
Security lighting, Entryways,
Stairwells, Hallways, Outdoor commercial,
Outdoor residential.
Wall mount
· Photocell dusk to dawn function available.
Listing
ETL & DLC 5.1.
Warranty
5-year limited warranty.
FEATURES AND SPECIFICATIONS
· Housing: ADC12 Aluminum Die Casting,
· Lens: Polycarbonate,
· Easy to install and operate.
Electrical
· High efficacy up to 140lm/W,
· AC120-277V, 0-10V dimming,
· CCT & Wattage Selectable,
· Surge Protection: L/N 2KV, L/N-P 2KV,
· Waterproof: IP65 rated.
Applications
Security lighting, Entryways,
Stairwells, Hallways, Outdoor commercial,
Outdoor residential.
Wall mount
· Photocell dusk to dawn function available.
Listing
ETL & DLC 5.1.
Warranty
5-year limited warranty.
