WLE7 Series
Rated 3.5/5 based on 11 customer reviews

WLE7 Series

Available: In Stock

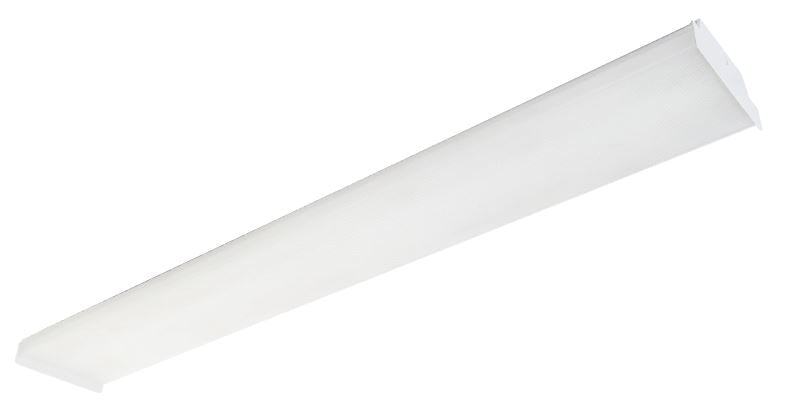

The NHL-WLE7 is a 1’ x 4’ LED wrap luminaire, which is designed as a direct replacement for fluorescent wraps. The NHL-WLE7 is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

Download Product PDF

Specifications
  • Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.
  • Long-life LEDs provide 122,000 hours of operation with at least 70% of initial lumen output (L70).
  • Choose from 4,771 luminaire lumens (119 LPW) at 3500k; 5,200 luminaire lumens (130 LPW) at 4000k; and 5,240 luminaire lumens (131 LPW) at 5000k.
  • Uniform illumination with no visible LED pixelation.
  • Universal 120-277 AC voltage (50-60Hz) is standard.
  • 0-10vdc dimming capability is standard.
  • Power factor > 0.90. Total harmonic distortion < 20%. Color rendering index > 80.
  • Steel housing and acrylic lens. Easy installation in new construction or retrofit.
  • cULus approved for damp locations (-20° C to 50° C / -4° F to 122° F).
  • Complies with FCC Part 15, Class A.
  • Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
  • Complies with IEC 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).
  • Complies with RoHS (Restriction on Hazardous Substances) requirements. 5-year warranty of all electronics and housing.
