NHL-AFL

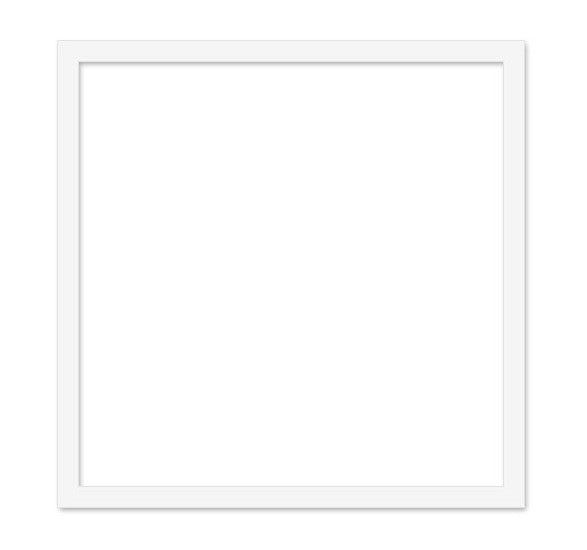

The Architectural LED Frame Light is a new and innovative recessed lighting design that offers functional lighting with contemporary aesthetics. Even illumination is achieved with a frame that is lit along the perimeter. With its frame design, there is a cutout in the middle for a ceiling tile in a recessed application, and this gives a new look and functionality where a traditional panel or troffer would fall short. A larger remote mount junction box makes wire termination and daisy chaining easier. The AFL can also suspended from cable showcasing a newer style when retrofitting older areas, or fit right in with a newer designed building. Available in 2x2 and 2x4, field selectable for CCT and wattage, the AFL features cutting edge optical technology to match or exceed lighting specifications of traditional panels and troffers.
APPLICATIONS
Offices, retail, schools, restaurants, residential
Construction

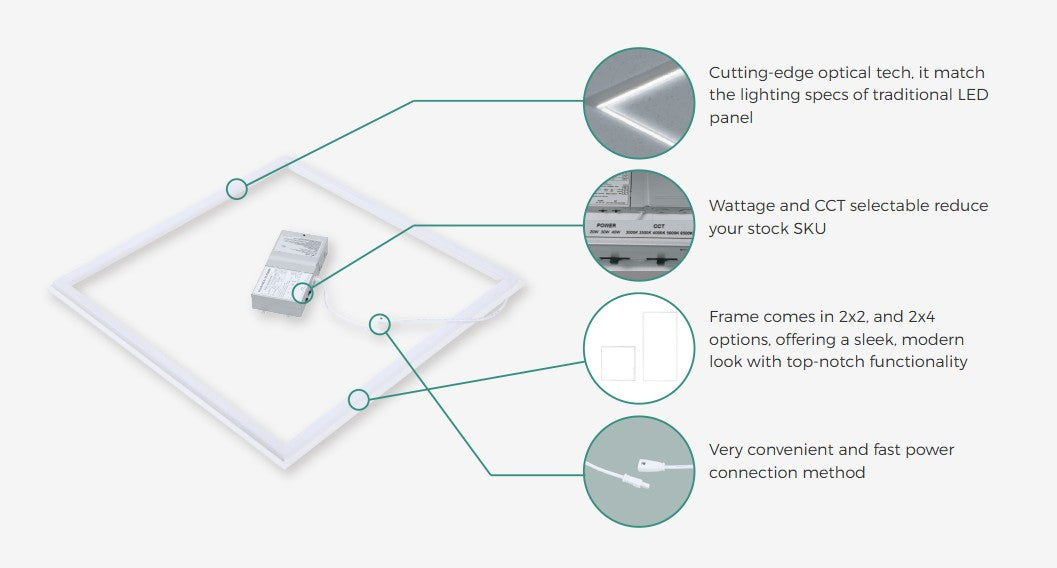

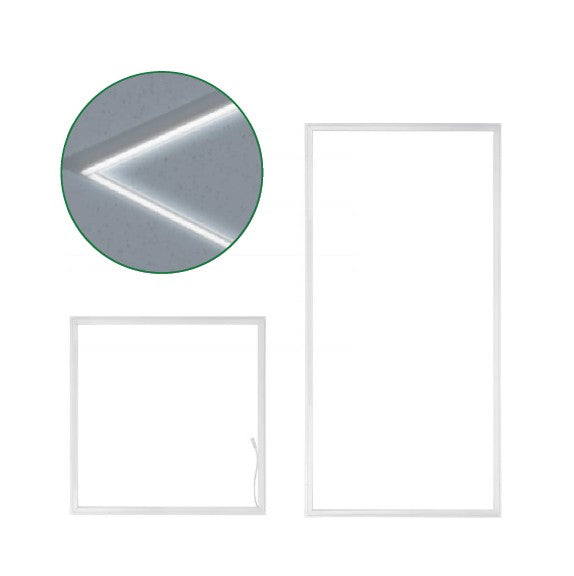

Frame comes in 2x2 and 2x4 options, offering a sleek modern look with top-notch functionality.
Wattage and CCT selectable.
Cutting-edge optical tech, it matches the lighting specs of traditional LED panels..
Electrical
Input voltage:120-277V
Operating frequency: 50/60Hz
Power factor:>0.95
Ambient temperature range: -20 C ~ +45 C
Color Temp: 3000/3500/4000/5000/6500K
Dimmable: 0-10V dimming
THD: <10%
IP Rating: IP40
CRI: >80
Beam angle: 120 degrees
Installation
Fixture is suitable for recessed mount with T-bar
Suspended installation
Listing
ETL listed, suitable for damp location.
DesignLights Consortium (DLC)Premium
Warranty
5-year limited warranty.
