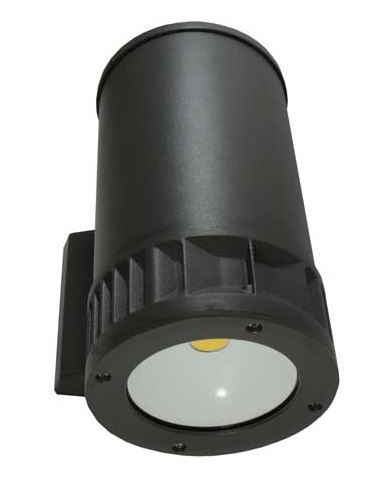

TBUD Series - Up or Down LED Wall Cylinder
Rated 3.5/5 based on 11 customer reviews

TBUD Series - Up or Down LED Wall Cylinder

Available: In Stock
The NHL-TBUD wall cylinder provides up or down lighting with narrow, medium and wide distributions designed to replace HID lighting systems from up to 100w MH or HPS. Typical wall mounted lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 8 to 16 feet can be used based on light level and uniformity requirements.

Download Product PDF

Accessories:
  • Photocell
  • Surge Protectiom
  • Battery Backup
Accessories:
  • Photocell
  • Surge Protectiom
  • Battery Backup

Housing: Extruded Round Aluminum Housing with Built-inHeat Sinks, Powdercoat Finish Over a Chromate Conversion Coating.

Reflector: White Reflector

Lens: Tempered Clear Flat Glass Lens

Mounting: Mount Over a 4″ Recessed Outlet Box

Distribution: Type VS Delivered Lumens: 4,380 (A Optics); 4,347 (B Optics); 3,381 (C Optics) 4,448 (E Optics) CRI: 80+ CCT: 4100K

Rated Life: 50,000 Hours

Wattage: COB: 20w

Driver: Electronic Driver, 120-277V, 50/60Hz Dimmable Driver

Listings & Ratings: CSA: Listed for Wet Locations IP67, 5-Year Warranty
