NHL-GNVP53VP
Rated 3.5/5 based on 11 customer reviews

NHL-GNVP53VP

Available: In Stock

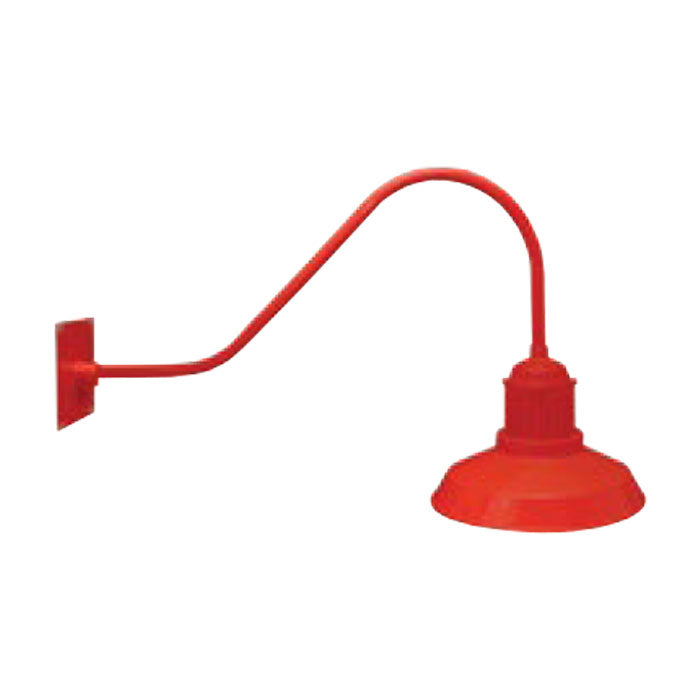

The NHL-GNVP53VP LEDicated Vaporproof Straight Shade Gooseneck LEDlight luminaire is vailable with 5 Gooseneck arms of various lengths and is designed to replace HID lighting systems up to 175w MH or HPS.

Download Product PDF

This vapor resistant fixture can withstand extreme physical and environmental abuse and is ideal for retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Designed for architectural wall mounting up to heights of 20 feet based on light level and uniformity requirements.

This vapor resistant fixture can withstand extreme physical and environmental abuse and is ideal for retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Designed for architectural wall mounting up to heights of 20 feet based on light level and uniformity requirements.

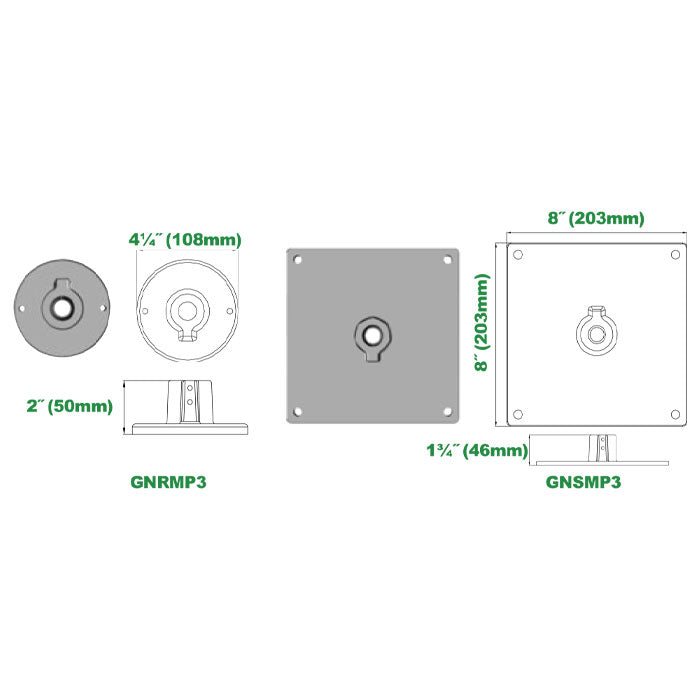

  • Housing: Heavy Duty Die Cast Aluminum Housing with Integral Heat Sinking, 3/4" NPS Threaded Mount
  • Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750. IP66 Sealed LED Compartment
  • Finish: Powdercoat Finish Over a Chromate Conversion Coating, Custom Colors Available Upon Request
  • Lens: Flat Clear Tempered Glass Lens
  • Mounting: Fixed Mount
  • Wattage: Array: 23w System: 27w (175w HID Equivalent)
  • Driver: Electronic Driver, 120-277V, 50/60Hz, Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%. Dimming Source Current is 150 Microamps.
  • Warranty: 5-year Warranty for -40 C to +50 C Envrionment
