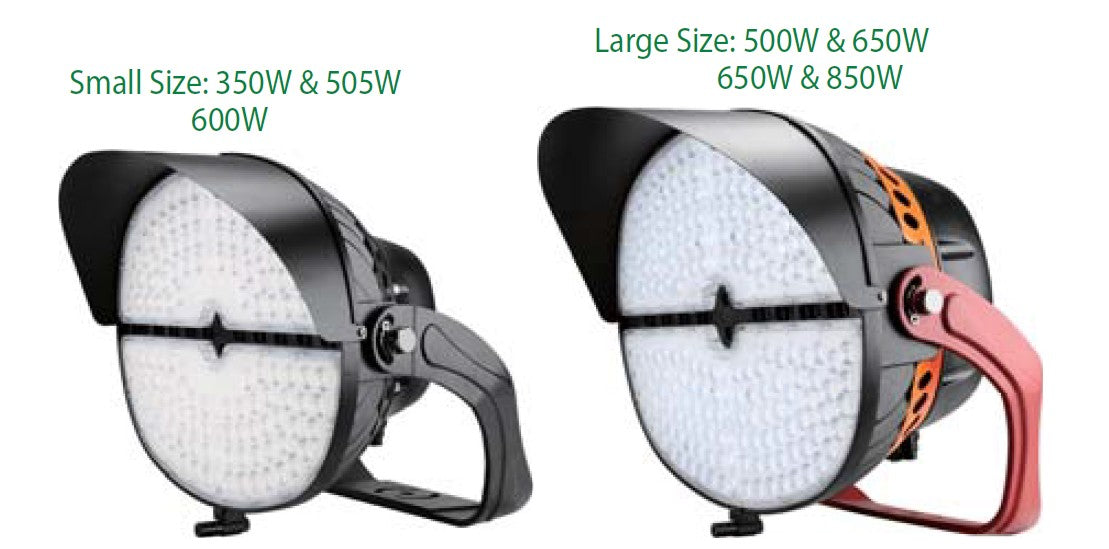

NHL-SPL4
By providing superior high output and high efficiency, NHL-SLP4 sports light series is the ideal solution for outdoor sports lighting such as municipal, school and semi-professional outdoor sports lighting. Dynamic thermal management design maximizes heat dissipation and significantly improves the life of luminaires. Built-in suppression and adds an extra layer of protection to the luminaire driver. Versatile mounting bracket for hassle-free installation.
Construction
- · Housing is completely sealed against moisture and environmental contaminants (IP65).
- · Low profile, 3G vibration rated compact design minimizes wind load requirements.
- · Sealed die-casting profile for outdoor applications.
Optics
- · Available in NEMA 3Hx3V, 4Hx4V,5Hx5V,6Hx6V distributions..
- · Light engines are available in standard 4000K,, 5000K and 5700K (70/80/90 CRI) configurations.
- · Scalable Lumen Packages from 49,500 to 118,000 Lumens.
- · Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
Electrical
- · Universal 120-277 VAC or 347-480 VAC input voltage.
- · Standard with 0-10V dimming driver(s).
- · Built in surge suppression with max.20KV @120-277V(Max.40KV @277-480V.
- · THD: _20%
- · Power Factor: _90%
Lifespan
- · Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
Ambient Temperature
- · Ambient operating temperature -40 C ro 55 C (-40 F to 131 F)
Certifications
- · DesignLights Consortium Qualified.
- · UL cUL wet location listed.
