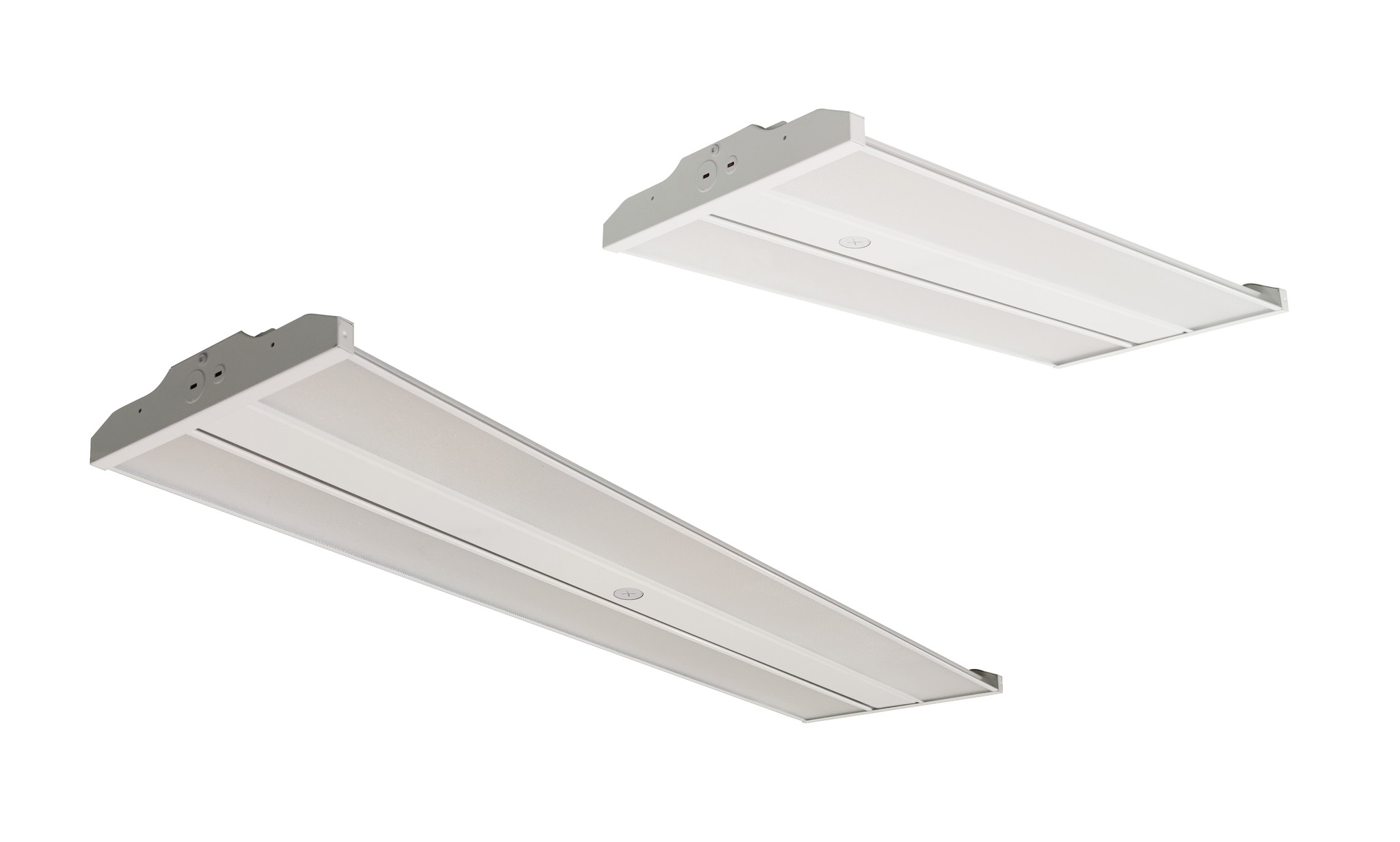

NHL-LHBF3
Dependable performance for expansive spaces
NHL-LHBF3 High Bay LED fixtures are renowned for energy efficiency, lumen and kelvin selectable, light uniformity, and long life. They’re ideal for replacing HID and linear fluorescent high bay lights, ensuring comfortable and safe conditions to maximize productivity in applications including commercial and manufacturing facilities, gymnasiums, warehouse lighting fixtures, and retail aisles.
NHL-LHBF3 Linear High Bays feature an architectural grade I-Beam design in which the driver channel is spaced away from the LEDs, allowing for better airflow and thermal management. This unique design contributes to a significantly longer lifespan and increased efficiency.
- Category: High Bays & Low Bays
APPLICATION:
Used for commercial and industrial high bay lighting applications
DESCRIPTION:
Sensor Ready Linear High Bay
Lumen & Kelvin Selectable
▪ Field selectable 4000k (neutral white) and 5000k (cool white) color temperatures.
▪ Patent-safe LEDs provide at least 134,000 hours of operation with at least 70% of initial lumen output (L70), and 40,000 hours with at least 90% of initial lumen output (L90).*
▪ Tri-lumen selectable delivers 12,000 to 60,000 luminaire lumens (see lumen table on downloadable pdf page 3).
▪ Screw in sensor ready (sensor sold separately).
▪ Emergency driver option available.
▪ Medium distribution is standard with optional narrow or wide distribution lenses.
▪ Universal 120-277V AC voltage (50-60Hz) is standard. 347-480V achieved with step-down transformers is optional. 0-10vdc dimming drivers are standard.
▪ Power factor > 0.90. ▪ Total harmonic distortion < 20%. ▪ Color rendering index > 80.
▪ Painted steel housing (stamped) and polycarbonate lenses are standard. ▪ Wire-guards available.
APPLICATION:
Used for commercial and industrial high bay lighting applications
DESCRIPTION:
Sensor Ready Linear High Bay
Lumen & Kelvin Selectable
▪ Field selectable 4000k (neutral white) and 5000k (cool white) color temperatures.
▪ Patent-safe LEDs provide at least 134,000 hours of operation with at least 70% of initial lumen output (L70), and 40,000 hours with at least 90% of initial lumen output (L90).*
▪ Tri-lumen selectable delivers 12,000 to 60,000 luminaire lumens (see lumen table on downloadable pdf page 3).
▪ Screw in sensor ready (sensor sold separately).
▪ Emergency driver option available.
▪ Medium distribution is standard with optional narrow or wide distribution lenses.
▪ Universal 120-277V AC voltage (50-60Hz) is standard. 347-480V achieved with step-down transformers is optional. 0-10vdc dimming drivers are standard.
▪ Power factor > 0.90. ▪ Total harmonic distortion < 20%. ▪ Color rendering index > 80.
▪ Painted steel housing (stamped) and polycarbonate lenses are standard. ▪ Wire-guards available.
