NHL-LHBF4
The LHBF4, is an architectural LED highbay with compact design using die-cast housing, giving it a clean and integral structure. The LHBF4 comes standard 6 IOKV surge protection, allowing it to run steadily under poor power conditions. Also available in 480v, with multiple lensing options to work in multiple areas, wireguards and 150Im/w as standard. The LHBF4 comes two different sizes depending on the lumen package chosen. A motion sensor port for a filed instable screw in motion sensor is standard and an option for a high output emergency battery backup is also available. It widely used for warehouses and storage, production facilities, industrial facilities, indoor sports fields, school and commercial gyms and more.
- Category: High Bays & Low Bays, Interior
Construction
• LHBF4 linear high bay features a die-cast aluminum housing. Powder coat corrosion resistant finish.
E•l0ec-lt0riVca dl:im mable driver, which can dim from 100% down to off.
• Input voltage 120-277V/277-480V, and 50/60Hz.
Designed to withstand up to L/N-PE:10kV,L-N:6kV surge.
Finish:
• White color is standard.
Ambient Temperature:
• -40 ° F (-40 ° C) to 122 ° F (50 ° C)
Compliances:
• cULus listed for dry locations.
Optics:

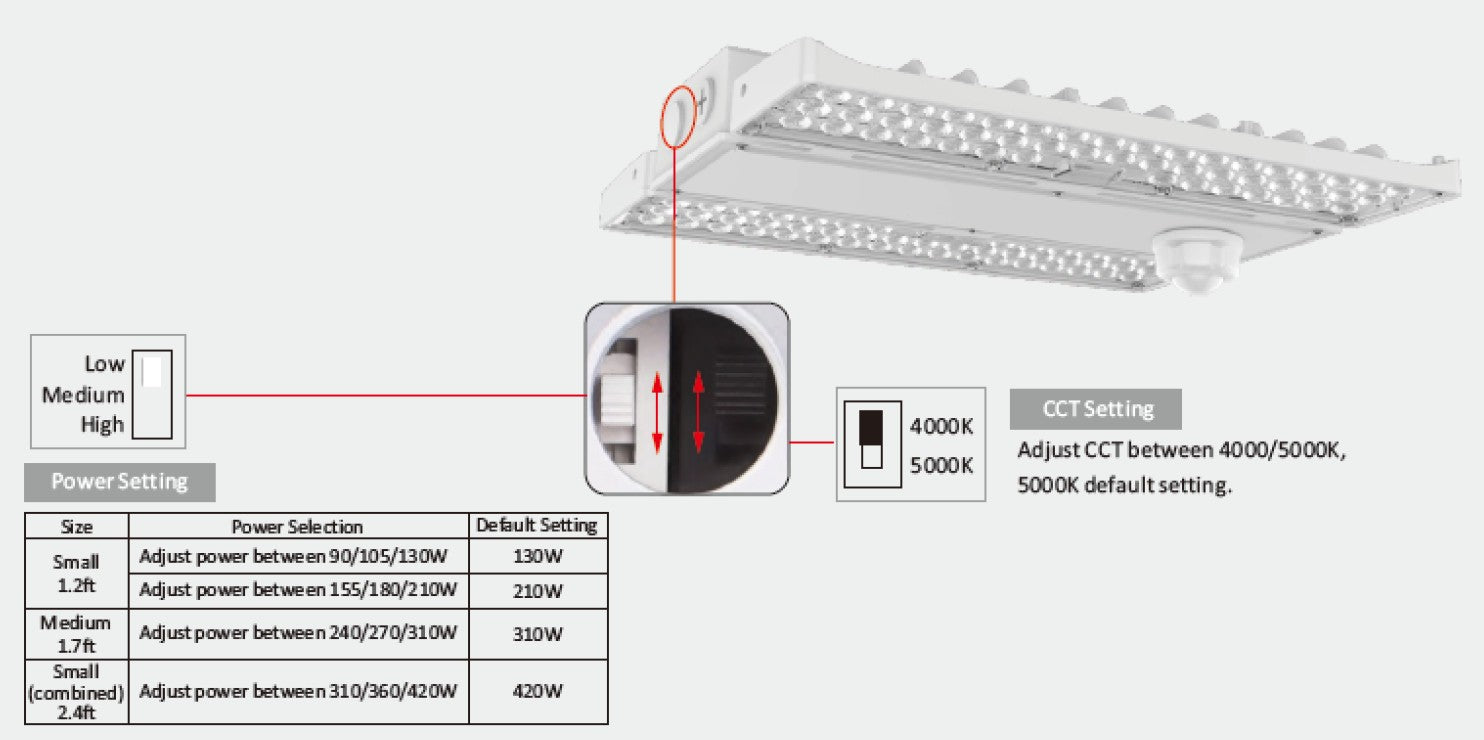

Adjustable CCT 4000K or 5000K (Default setting).
• DLC® (Design Lights Consortium) Qualified. Please refer to the DLC website for specific product qualifications.
• CRI >80.
• Polycarbonate lens with high angle cut-off design, UGR<28 meet DLC 5.1 premium.
• General Optic Lens and Aisle Optic Lens are available.
Warranty:
• 5-year limited warranty.
Construction
• LHBF4 linear high bay features a die-cast aluminum housing. Powder coat corrosion resistant finish.
E•l0ec-lt0riVca dl:im mable driver, which can dim from 100% down to off.
• Input voltage 120-277V/277-480V, and 50/60Hz.
Designed to withstand up to L/N-PE:10kV,L-N:6kV surge.
Finish:
• White color is standard.
Ambient Temperature:
• -40 ° F (-40 ° C) to 122 ° F (50 ° C)
Compliances:
• cULus listed for dry locations.
Optics:
Adjustable CCT 4000K or 5000K (Default setting).
• DLC® (Design Lights Consortium) Qualified. Please refer to the DLC website for specific product qualifications.
• CRI >80.
• Polycarbonate lens with high angle cut-off design, UGR<28 meet DLC 5.1 premium.
• General Optic Lens and Aisle Optic Lens are available.
Warranty:
• 5-year limited warranty.
