Applications:
- Retail Centers
- Schools & Universities
- Office Buildings
- Medical Facilities
- Apartment & Condominiums
Applications:
- Retail Centers
- Schools & Universities
- Office Buildings
- Medical Facilities
- Apartment & Condominiums
ILLUMINATION

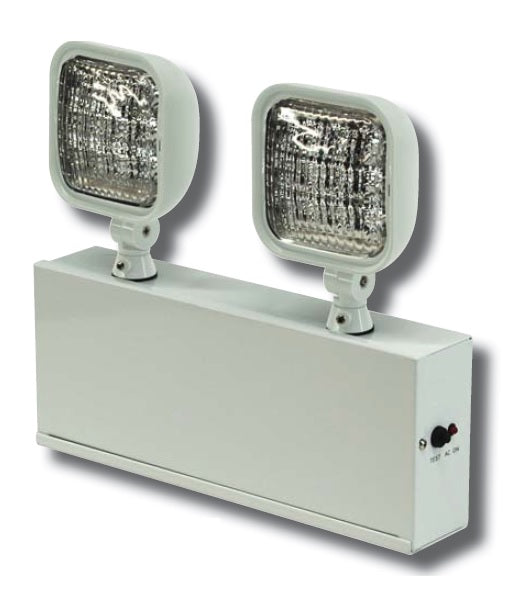

Two, 6V, 1.0W adjustable square LED lamp heads in engineering grade, high-impact resistant, thermoplastic.
ELECTRICAL
Dual 120V/277V. Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing. LVD (low voltage disconnect) prevents battery from deep discharge. 6V sealed lead acid, maintenance-free, rechargeable battery. Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination. Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours. Remote capacity of 25W standard. Runs up to 8 hours without remote heads.
MOUNTING
Knockouts on the back for wall mount. Side and top knockouts for conduit feed applications.
HOUSING
Durable 20-gauge steel construction. White finish.
WARRANTY / LISTING
Five year warranty on all electronics and housing. Battery pro rated for two years. UL Listed for damp locations (20°C – 50°C) standard. Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
