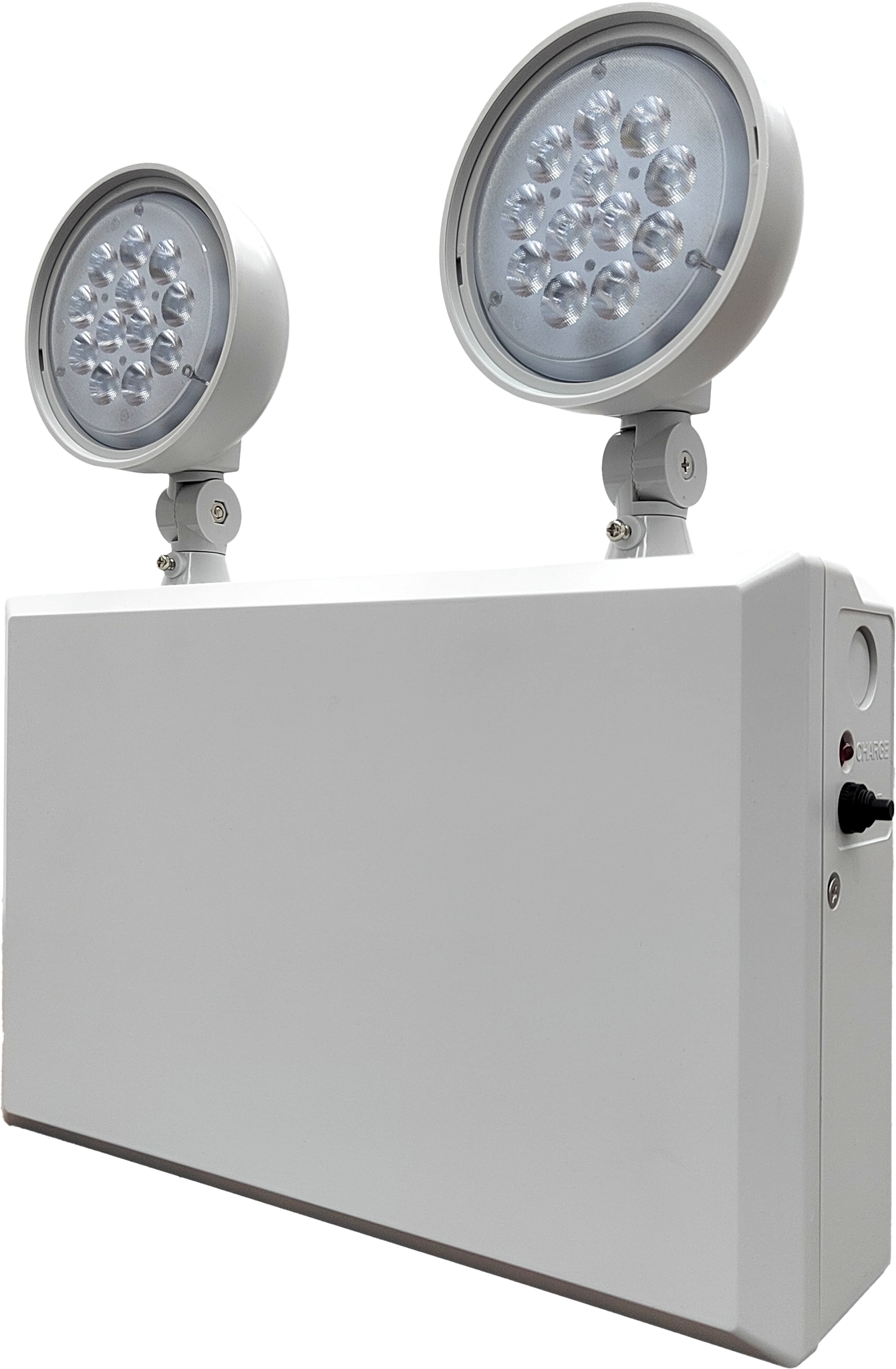

XR - LED High Output Industrial Emergency Unit
- Category: Emergency, Life Safety
ILLUMINATION
Ultra-bright, energy efficient, long-life White LED adjustable lamp heads provide up to 100-ft center-tocenter spacing with a 6-ft path o f egress at 15-ft mounting height.
6.0 watt (12 LEDs x 0.50 watt) p e r head.
Adjustable glare-free PAR-Type lamp heads with al/-inclusive lamp, reflector and lens assembly.
ELECTRICAL
Dual 120/277 voltage.
Charge rate/power "ON" LED indicator light and push-to-test switch for mandated code compliance testing.
L VD (low voltage disconnect) prevents battery from deep discharge.
6V/12V maintenance-free, rechargeable sealed lead acid battery.
Offers 38.0W, and 88.OW o f remote capacity (6V/12V DC output) standard on the 50W, and 100W models.
Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination.
Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
MOUNTING
Knockouts on the back for wall mount.
Side and top knockouts for conduit feed applications.
HOUSING
Injection-molded, engineering grade, 5VA flame retardant,
high-impact thermoplastic construction.
WARRANTY/ LISTING
Five year warranty on all electronics and housing. Battery pro rated for two years.
Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA,
Local and State Codes.
UL Listed for damp locations (20 ° C - 40 °C) .
ILLUMINATION
Ultra-bright, energy efficient, long-life White LED adjustable lamp heads provide up to 100-ft center-tocenter spacing with a 6-ft path o f egress at 15-ft mounting height.
6.0 watt (12 LEDs x 0.50 watt) p e r head.
Adjustable glare-free PAR-Type lamp heads with al/-inclusive lamp, reflector and lens assembly.
ELECTRICAL
Dual 120/277 voltage.
Charge rate/power "ON" LED indicator light and push-to-test switch for mandated code compliance testing.
L VD (low voltage disconnect) prevents battery from deep discharge.
6V/12V maintenance-free, rechargeable sealed lead acid battery.
Offers 38.0W, and 88.OW o f remote capacity (6V/12V DC output) standard on the 50W, and 100W models.
Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination.
Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
MOUNTING
Knockouts on the back for wall mount.
Side and top knockouts for conduit feed applications.
HOUSING
Injection-molded, engineering grade, 5VA flame retardant,
high-impact thermoplastic construction.
WARRANTY/ LISTING
Five year warranty on all electronics and housing. Battery pro rated for two years.
Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA,
Local and State Codes.
UL Listed for damp locations (20 ° C - 40 °C) .
