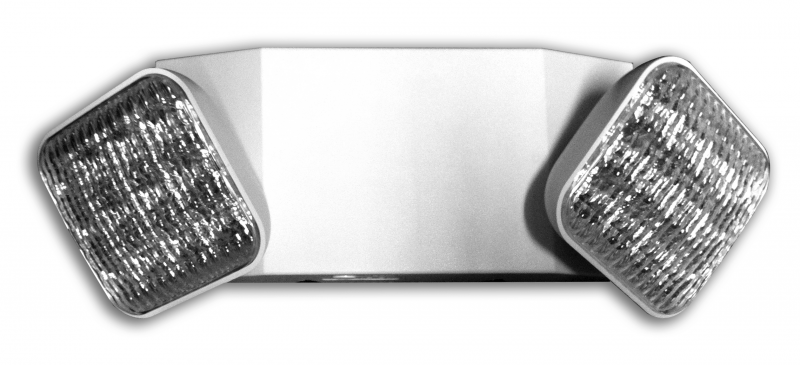

High Lumen LED EM (NHL-EUL & NHL-EUL-HO)
Rated 3.5/5 based on 11 customer reviews

High Lumen LED EM (NHL-EUL & NHL-EUL-HO)

Available: In Stock

Specifications:

ILLUMINATION
  • Long lasting, efficient ultra-bright white LED lamp heads.
  • 1 watt (8 LEDs x 0.125 watt) per head.
  • High-performance chrome-plated metalized reflector and plastic lens for optimal light distribution.
  • Adjustable LED lamp heads provide optimal center-to-center spacing. High-lumen option available for increased centerto-center spacing.
ELECTRICAL
  • Dual 120/277 voltage.
  • Charge rate/power “ON” LED indicator light and push to test switch for mandated code compliance testing.
  • 3.6V long-life, maintenance-free, rechargeable NiCd battery.
  • Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
  • Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
MOUNTING
  • Surface mount via quick-connect back plate; fits most standard size junction boxes and snaps into place to make internal electrical connections.
  • Top and side knockout for conduit applications.
  • Suitable for wall or ceiling mount.
HOUSING
  • Injection-molded, engineering-grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.
OPTIONS
  • SDT: Self-diagnostic test feature performs monthly, biannually, and annually tests to ensure reliable operation and to meet electrical and life safety codes.
  • HL: 12-LED heads (12 LEDs x 0.125 watt) per head provide increased center-to-center spacing.
  • SPV: 208/220/240 multi-tap voltage in 50/60Hz.
WARRANTY/LISTING
  • Five year warranty on all electronics and housing. Batteries pro-rated for five years.
  • UL listed for damp locations. (0°C – 50°C)
  • Meets UL924, NFPA101 Life Safety Code, NEC, OSHA, Local and State Codes.
