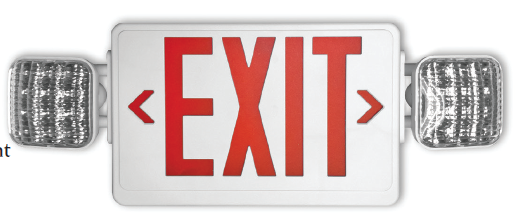

LED Exit-Emergency Combo
The BCL is our standard LED Exit/Emergency Combo. This unit is designed to give you that familiar feel of the old incandescent combos, but now in energy efficient LED. The BCL is a good choice for just about any commercial space.
- Product SKU: NHL-BCL
- Category: Emergency, Life Safety
Mounting: EZ-snap thermoplastic mounting canopy included – provides top, or back mount.
Warranty / Listing:
- Five year warranty on all electronics and housing. Batteries pro-rated for five years.
- UL listed for damp locations. (0°-40°C/32°-1104°F standard)
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
Mounting: EZ-snap thermoplastic mounting canopy included – provides top, or back mount.
Warranty / Listing:
- Five year warranty on all electronics and housing. Batteries pro-rated for five years.
- UL listed for damp locations. (0°-40°C/32°-1104°F standard)
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
Illumination:
- Long lasting, efficient ultra-bright white LEDs.
- 1 watt (8 LEDs x 0.125 watt) per head
- High-performance chrome-plated metalized reflector and polycarbonate lens for optimal light distribution.

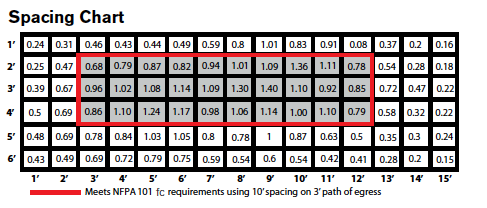

- Adjustable LED lamp heads provides optimal center-to-center spacing. Optional high-lumen heads are available for increased center-to-center spacing.
- Long-lasting, energy efficient Red or Green LED exit sign.
Electrical:
- Dual 120V/277V voltage.
- Charge rate/ power “ON” LED indicator light and push-to test switch for mandated code compliance testing.
- 9.6v Long-life maintenance-free, rechargeable Ni-Cd battery, (EM model)
- Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
