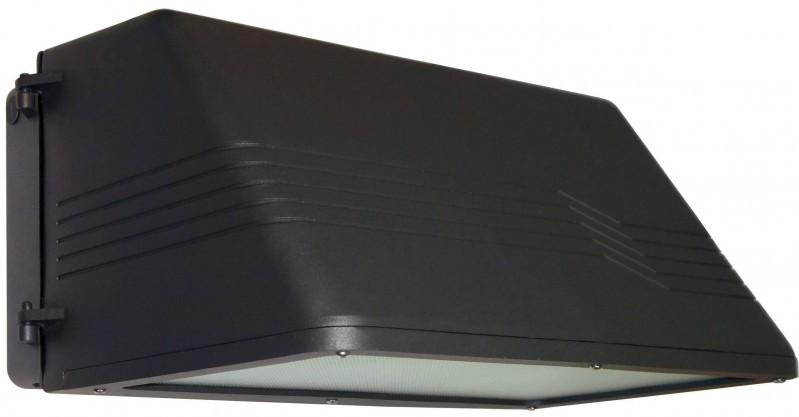

Large Wedge LED
The L-Wedge series is corrosion resistant large wall pack designed to meet the rugged demands of industrial and commercial applications. Suitable for wet locations, these lights provide illumination for safety and security along building perimeters.
The unique zero sight line feature allows this product to meet the local "Dark Sky" requirements.
- Uses up to 88% less energy when compared to the HID equivalent
- Instant on/off operation
- Resistant to shock and vibration
- Surge Protection
- Unique optical design provides optimum light distribution
- 3,000K, 4,000K, 5,000K, 5,500K color temperature
- Power factor 0.98 (typ)
- Produces no UV radiation
- Contains no Mercury
- 5 year limited warranty
- Product SKU: NHL-LWEDGE
- Category: Decorative Site, Outdoor, Sconce
- Parking Areas
- Entrances
- Walkways
- Underpasses
- Loading Docks
- Recreation Areas
- Parking Areas
- Entrances
- Walkways
- Underpasses
- Loading Docks
- Recreation Areas
Housing: Die Cast Aluminum Housing & Hinged Full Cutoff Front Frame, 1/2 inch Coin Plugs with O-rings for Conduit & Photocell, Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating
Lens: Clear Flat Glass Lens or Clear Flat Prismatic Glass Lens Mounting: Cast-in Template
Mounting: Directly Over a 4 inch Recessed Outlet Box, or Use 1/2 inch Surface Conduit.
Array Lumens: 6,977 (F Optic) Delivered Lumens: CCT 5000K/CRI 80- TYPE III-5,895 Lumens / TYPE V-6,525 Lumens / CCT 4000K/CRI 80-Type III- 5659 Lumens / TYPE V- 6264 Lumens
Rated Life: 50,000 Hours 5-Year Warranty Aluminum Boards
Wattage: Array: 55.8w, System: 63w
Driver: Electronic Driver, 120-277V, 50/60Hz or 347/480V, 50/60Hz; Dimmable Driver
Listing & Ratings: CSA Listed for Wet Locations. IP55 Operating Temperatures: 40°C to +40°C, DLC Approved
Lifespan: 201,00-hour Lifespan based on L70 Calculations
