Die Cast Aluminum Exit-Emergency Combo
![NHL-EPEM]()
![NHL-EXEC]()
![NHL-WLECX]()
![MR16X Emergency Unit Wet Location]()
![Wet Location Exit/Emergency Combo]()
Die Cast Aluminum Exit-Emergency Combo
Available:
In Stock

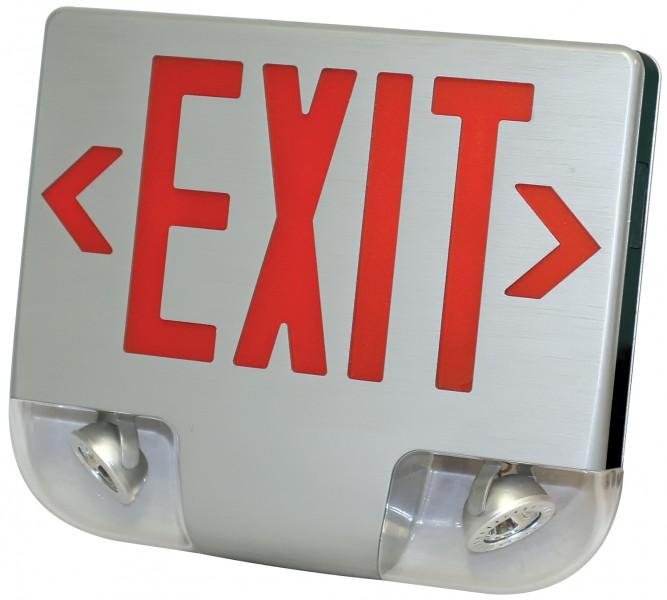

The DCC is the exit/emergency combo compilation of our Die Cast Aluminum exits. The DCE provides everything needed in a traditional combo unit, but with a stronger Die Cast Aluminum housing.
- Product SKU: NHL-DCC
- Category: Emergency, Life Safety
$0.00
Mounting:
- Aluminum mounting canopy included for top or end mount.
-
Universal K/O pattern on back plate for wall
Warranty / Listing:
- Five year warranty on all electronics and housing. Battery pro-rated for five years.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
-
UL listed for damp locations. (0°C – 50°C)
Mounting:
- Aluminum mounting canopy included for top or end mount.
-
Universal K/O pattern on back plate for wall
Warranty / Listing:
- Five year warranty on all electronics and housing. Battery pro-rated for five years.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
-
UL listed for damp locations. (0°C – 50°C)
Illumination:
- Ultra-bright, energy efficient, long-life Red or Green LED
- High performance premium grade, ultra-bright white LED lamps.
-
3W (1 LED x 3 watts) per head
Electrical:
- Dual 120/277 voltage.
- Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- 8.4V long-life, maintenance-free, rechargeable NiCd battery.
- Internal solid-state transfer switch automatically connects the internal battery to LED board and LED lamp heads for minimum 90-minute emergency illumination.
-
Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Housing:
- First premium grade die-cast combo in the market. Unique new design provides spec-grade EXIT sign with LED lamp heads in one low-profile housing.
- Premium-grade, extruded aluminum housing (also available in black or white powder-coated finishes).
- Field selectable knockout Chevron directional indicators.
- Quick-snap face plate closure.
-
Unique design allows double face conversion in the field.
