NHL-LCH

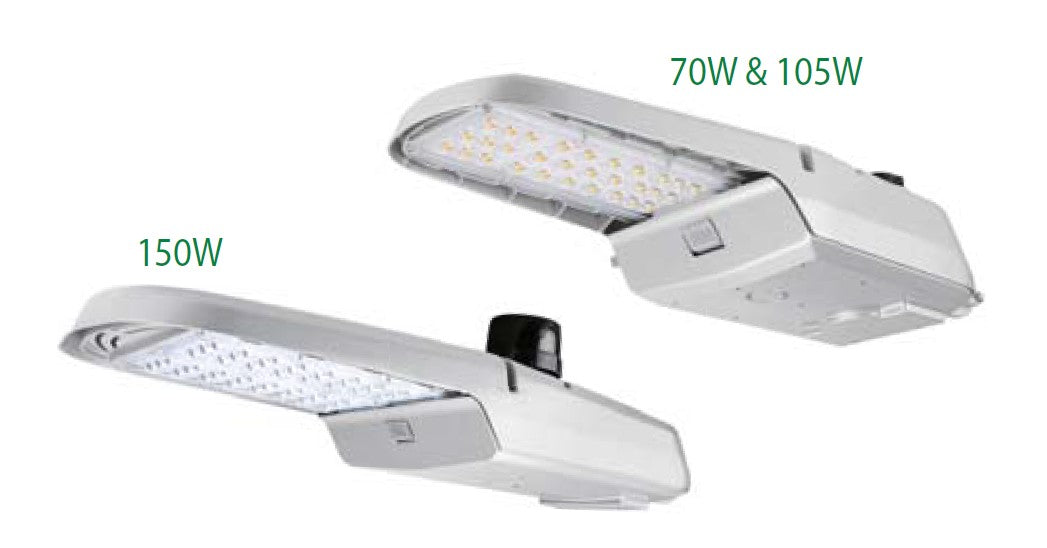

The NHL-LCH LED Cobra head is designed to replace traditional Cobra Head fixtures up to 400W MH. It provides excellent optical performance for a variety of areas and road applications. The NHL-LCH series can reduce energy costs by up to 65%, coupled with low maintenance costs, further reducing budget costs, meeting customers' low budgets while having high-quality lighting. It also provides photocell, sensor and surge protection options, as well as excellent lumen maintenance, The NHL-LCH is ideal for sidewalks, parking lots, street lighting, and general roadway lighting.
- Product SKU: NHL-LCH
- Category: Area Site Lighting, Outdoor
Construction
Heavy-duty cast aluminum housing and removable door 3G vibration rated to ensure strength of construction and longevity in application.
Housing is completely sealed against moisture and environmental contaminants.
Optics
EPA ：0.4567

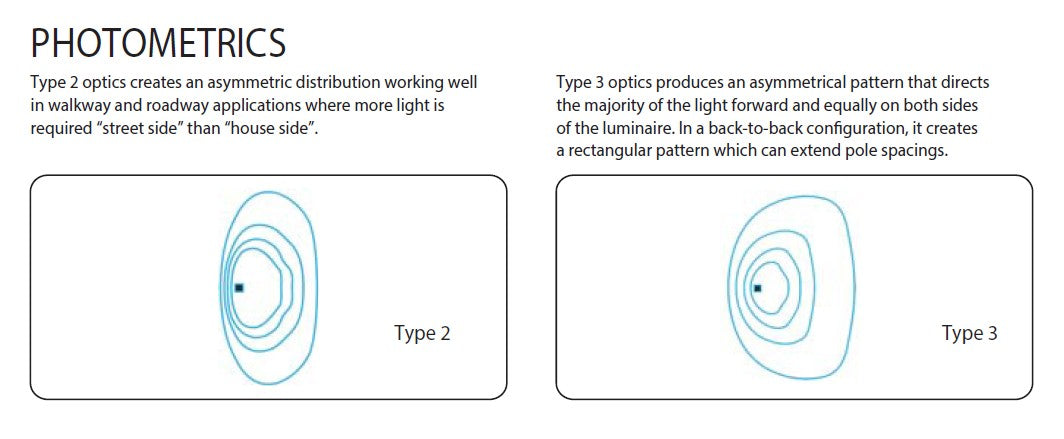

Available in IES Type II, III distribution.
Offered Standard in 3000K , 3500K, 4000K and 5000K (+/- 275K) CCT and minimum 70 CRI.
Scalable Lumen Packages from 9,200 to 20,000 Lumens.
Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
Electrical
Standard drivers feature electronic universal voltage 120-277V, 347V-480V operation.
Standard 1-10V dimming and 10kA(@120-277V) / 20KA(@347-480V) common and differential- mode surge protection available.
Greater than 0.9 power factor, less than 20% harmonic distortion, and is suitable for operation in -40°C to 40°C ambient environments.
LED drivers mount to die-cast aluminum back housing for optimal heat sinking, operation efficacy, and prolonged life.
Lifespan
Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Certifications
UL cUL wet location listed.
DeisngLights Consortium Qualified
Warranety
Five-year warranty.
Construction
Heavy-duty cast aluminum housing and removable door 3G vibration rated to ensure strength of construction and longevity in application.
Housing is completely sealed against moisture and environmental contaminants.
Optics
EPA ：0.4567
Available in IES Type II, III distribution.
Offered Standard in 3000K , 3500K, 4000K and 5000K (+/- 275K) CCT and minimum 70 CRI.
Scalable Lumen Packages from 9,200 to 20,000 Lumens.
Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
Electrical
Standard drivers feature electronic universal voltage 120-277V, 347V-480V operation.
Standard 1-10V dimming and 10kA(@120-277V) / 20KA(@347-480V) common and differential- mode surge protection available.
Greater than 0.9 power factor, less than 20% harmonic distortion, and is suitable for operation in -40°C to 40°C ambient environments.
LED drivers mount to die-cast aluminum back housing for optimal heat sinking, operation efficacy, and prolonged life.
Lifespan
Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Certifications
UL cUL wet location listed.
DeisngLights Consortium Qualified
Warranety
Five-year warranty.
