NHL-BH

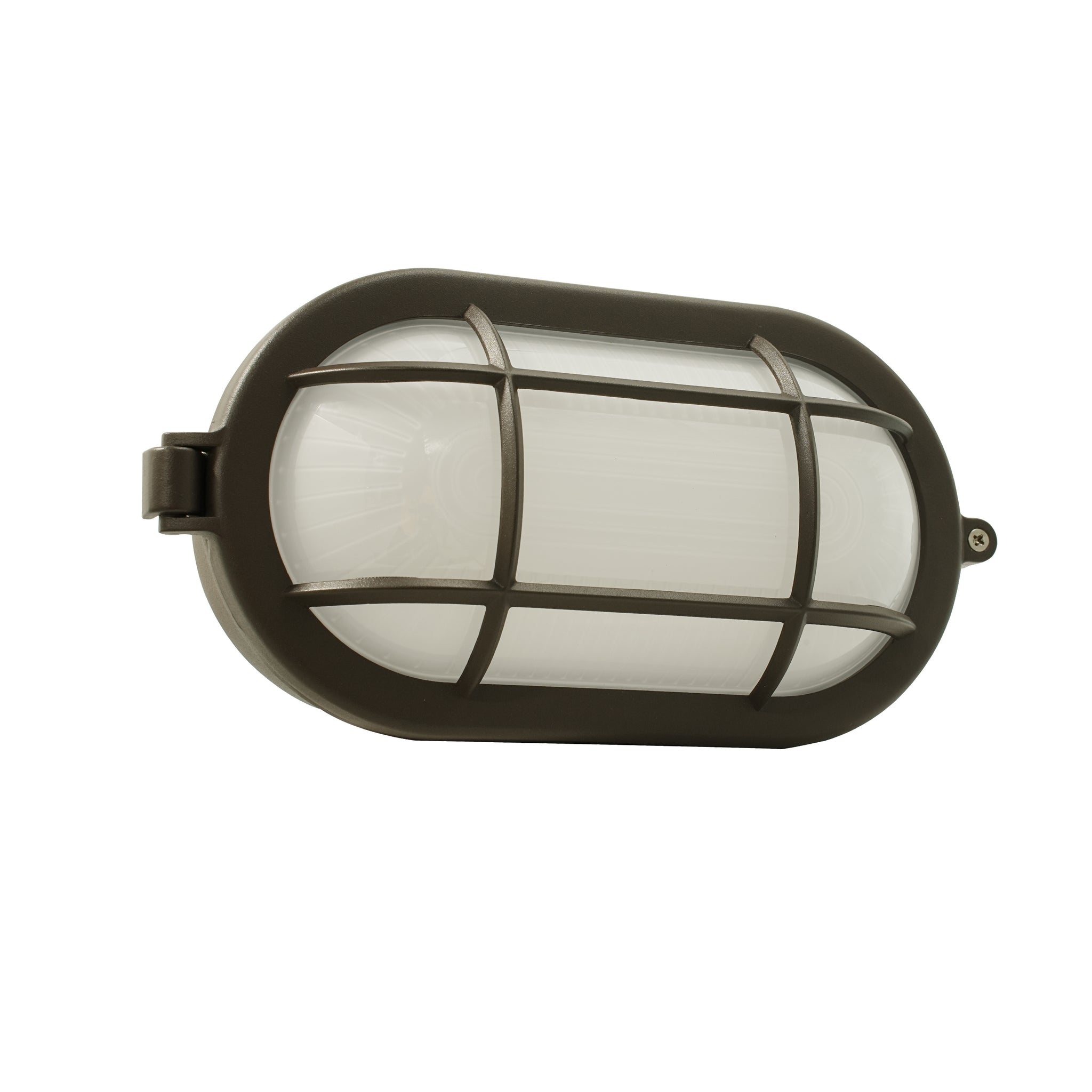

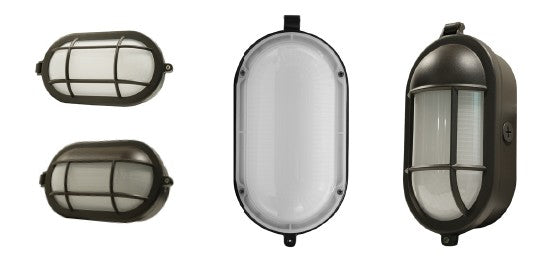

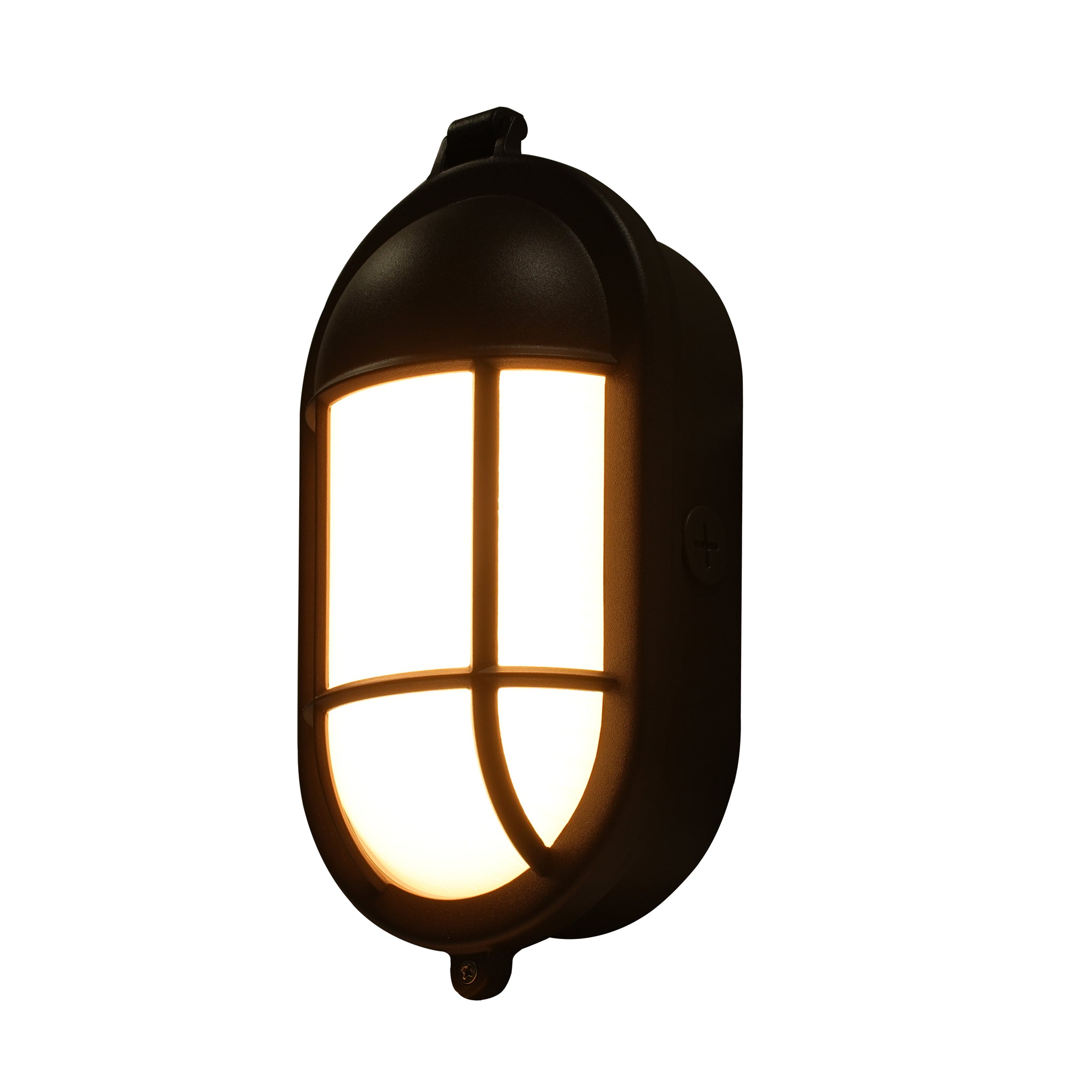

The newest addition to the bulkhead line, the NHL-BH delivers durable, high-performance outdoor lighting with field-selectable lumen output and three color temperature flexibility (3000K/4000K/5000K). Housed in a rugged, powder-coated die-cast aluminum bronze enclosure, the NHL-BH is IP65 and IK08 rated for demanding wet-location applications. Universal 120–277V operation, integrated photocell, and long-life LEDs make it a reliable, low-maintenance solution for commercial and industrial exteriors. Choose 3 distinct looks when you pair the base luminaire with a faceplate. Perfect for nautical themes, marina and harbor lighting, as well as general building lighting that will provide a new and exciting look over traditional style wallpacks.
- Product SKU: NHL-BH
- Category: Outdoor, Wall Mount Exterior
HOUSING
• Premium powder-coat, die cast aluminum, Bronze housing.
ELECTRICAL
• Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) .
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10V DC dimming drivers are standard.
• Integrated photocell is standard. Photocell can be enabled or disabled by
switch.
• Input transient surge protection = 1kV.
• Power factor > 90.
• Total harmonic distortion < 20%
OPTICAL SYSTEM
• Frosted polycarbonate lens.
• Field selectable 3000K (warm white), 4000K (neutral white) and 5000K (cool
white) color temperatures.*
• Selectable output delivers 2,695 to 3,824 nominal lumens.*
• Long-life LEDs provide 157,000 hours of operation with at least 70% of initial
lumen output (L70), and 47,000 hours with at least 90% of initial lumen output
(L90).**
• LED color maintenance < 0.0017 chromaticity shift (Δu’v’) over the initial 6,000
hours of operation.
• Color Rendering Index > 80.
MOUNTING
• Surface mounting.
CODE COMPLIANCE
• cULus listed for wet locations.
• Complies with FCC Part 15, class A.
• IP65 rated for ingress protection.
• IK08 rated for impact protection.
WARRANTY
• 5 year warranty on all electronics and housing.
