NHL-TVT
The NHL-TVT is a high-performance food-grade LED linear fixture engineered for rigorous wash-down environments. With an IP69 rating, it withstands high-pressure, high-temperature water jets up to 80°C (176°F) from nozzle distances of 15-20 cm (6-8 inches). Built to NSF food-zone standards, its unique smooth circular housing prevents accumulation of debris or residues, enabling fast, thorough cleaning and sanitation. Made in the USA, BAA & BABA Compliant, NSF Rated, NEMA 4X and perfectly suited for food processing, meat processing and agricultural facilities, dairy processing, breweries, commercial kitchens and food preparation areas, pharmaceutical manufacturing, cold storage and freezer facilities, marine and boat wash stations.
- Product SKU: NHL-TVT
- Category: Made in America, Vapor Tight
Benefits and Features
- IP69-rated housing withstands high-pressure, high-temperature wash-down up to 176°F
- Smooth circular design prevents debris accumulation for fast, thorough cleaning
- NSF-certified for food-zone sanitation compliance
- Stainless steel end caps for durability in harsh environments Tool-free body and board tray reduces maintenance time Impact-resistant acrylic or polycarbonate body options.
- Available in 2 ft, 4ft, or 8 ft
- Made in USA with BAA/BABA compliance.
Electrical
- Universal voltage operation (120-277 VAC) standard. High voltage option available (347-480 VAC).
- Standard 0-10V dimming for lighting control integration. Dim-to-off capability for maximum energy savings.
Applications
- Food processing, meat processing, and agriculture facilities Cold storage and freezer facilities
- Commercial kitchens and food preparation areas
- Pharmaceutical manufacturing Car wash facilities
- Dairy processing and beverage production facilities
- Marine and boat wash facilities Industrial and chemical cleaning stations
Certifications
- UL 1598 listed for wet location applications
- NSF International certified for food service environments IP65, IP66, IP67, and IP69 ingress protection ratings NEMA 4X rated for corrosive and wash-down conditions
Installation

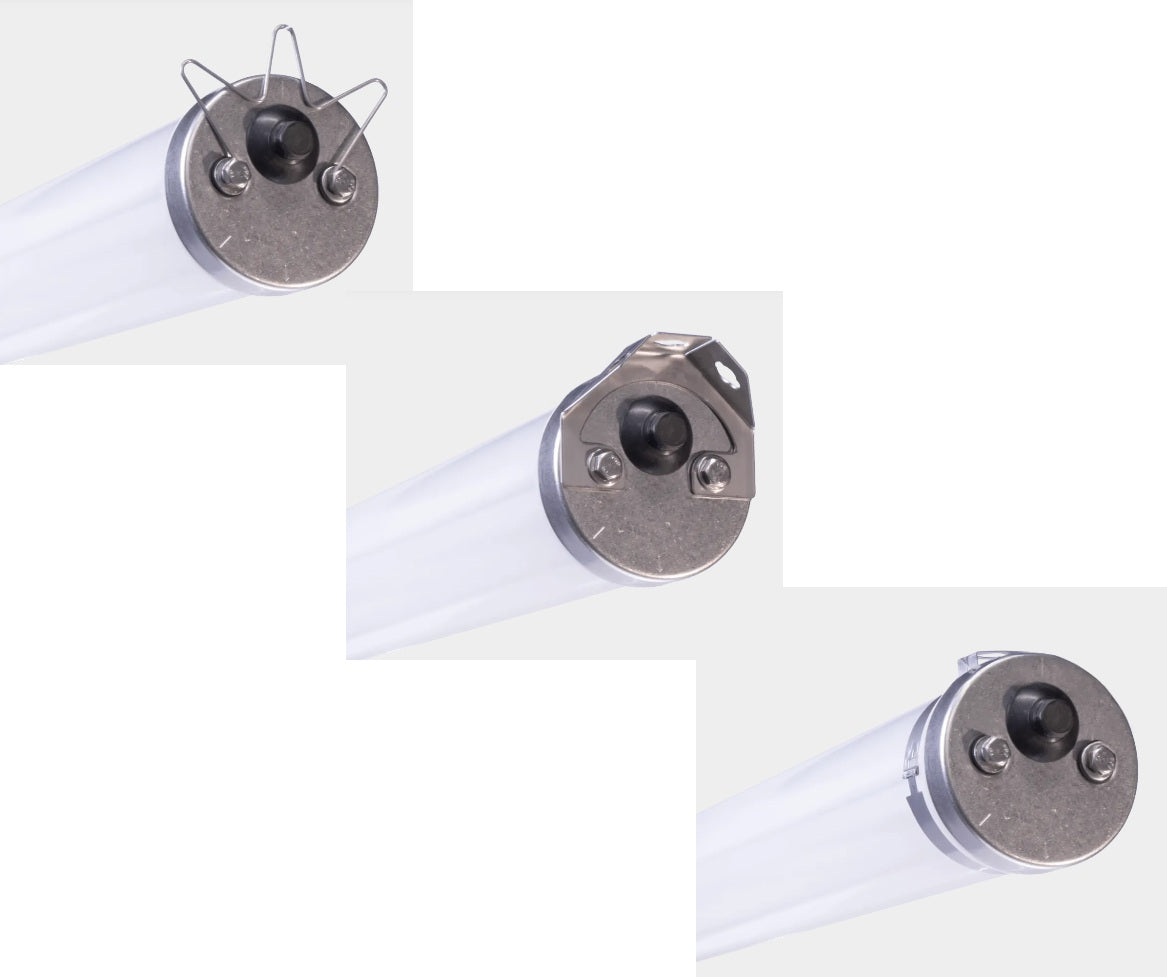

- Multiple mounting options: wire form bracket, latch mount, or rigid mount
- Stainless steel mounting hardware included with fixture
- Tool-free lens and tray access for quick maintenance during wash-down cycles
Benefits and Features
- IP69-rated housing withstands high-pressure, high-temperature wash-down up to 176°F
- Smooth circular design prevents debris accumulation for fast, thorough cleaning
- NSF-certified for food-zone sanitation compliance
- Stainless steel end caps for durability in harsh environments Tool-free body and board tray reduces maintenance time Impact-resistant acrylic or polycarbonate body options.
- Available in 2 ft, 4ft, or 8 ft
- Made in USA with BAA/BABA compliance.
Electrical
- Universal voltage operation (120-277 VAC) standard. High voltage option available (347-480 VAC).
- Standard 0-10V dimming for lighting control integration. Dim-to-off capability for maximum energy savings.
Applications
- Food processing, meat processing, and agriculture facilities Cold storage and freezer facilities
- Commercial kitchens and food preparation areas
- Pharmaceutical manufacturing Car wash facilities
- Dairy processing and beverage production facilities
- Marine and boat wash facilities Industrial and chemical cleaning stations
Certifications
- UL 1598 listed for wet location applications
- NSF International certified for food service environments IP65, IP66, IP67, and IP69 ingress protection ratings NEMA 4X rated for corrosive and wash-down conditions
Installation
- Multiple mounting options: wire form bracket, latch mount, or rigid mount
- Stainless steel mounting hardware included with fixture
- Tool-free lens and tray access for quick maintenance during wash-down cycles
