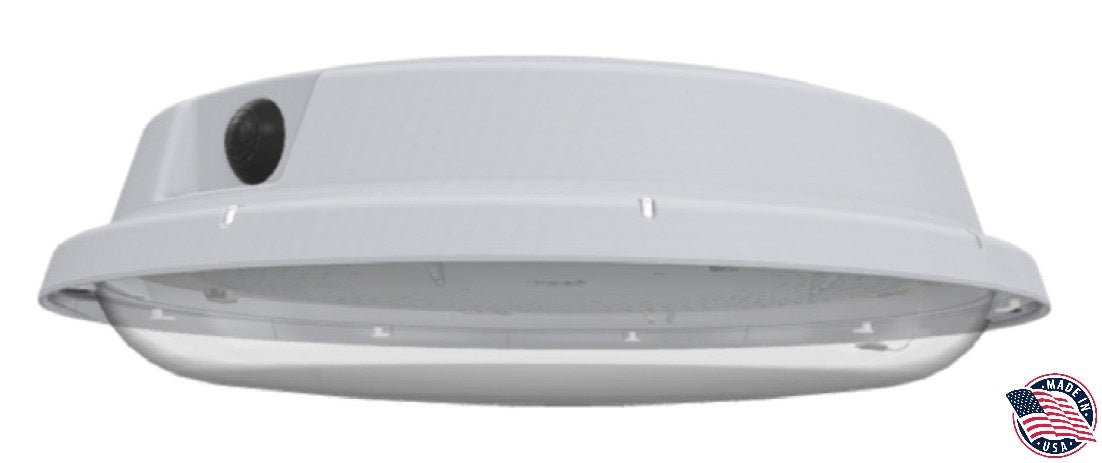

NHL-RVT
The NHL-RVT is a combination of the LVT line’s best features in a smaller round unit for tight areas that need LED lighting where space may be comprised. Fully NSF rated, IP67, and Made in the USA. The RVT is a great option for food production facilities, barns, wood shops, stone and tile cutting facilities or any other area where you need dust tight/vapor proof fixture that can operate in dirty environments.
- Product SKU: NHL-RVT
- Category: Made in America, Vapor Tight
Features & Benefits
• Housing
» UL SVA fiberglass (will not melt or burn)
» UL approved for through wiring
» UL f1 rated (suitable for outdoor use and exposure to ultraviolet light)
» Meets UL 746 (suitable for exposure to and immersion of water)
• Board & Driver Trays
» LED boards are attached to a one-piece painted white steel tray
» Tray securely snaps into a stainless steel retainer clips, which are installed in
housing
» Drivers are attached to the driver attachment rail (plate), which is installed in the base of the housing for maximum heat dissipation
• Gasket
» “Poured in place”, closed cell polyurethane
» Compressed recovery of 95% to 99%
» Will not support fungal growth
• No Bulky Latches
» Pinsert™ System
» Captive pins snap in place to seal the housing and lens together
Features & Benefits
• Housing
» UL SVA fiberglass (will not melt or burn)
» UL approved for through wiring
» UL f1 rated (suitable for outdoor use and exposure to ultraviolet light)
» Meets UL 746 (suitable for exposure to and immersion of water)
• Board & Driver Trays
» LED boards are attached to a one-piece painted white steel tray
» Tray securely snaps into a stainless steel retainer clips, which are installed in
housing
» Drivers are attached to the driver attachment rail (plate), which is installed in the base of the housing for maximum heat dissipation
• Gasket
» “Poured in place”, closed cell polyurethane
» Compressed recovery of 95% to 99%
» Will not support fungal growth
• No Bulky Latches
» Pinsert™ System
» Captive pins snap in place to seal the housing and lens together
