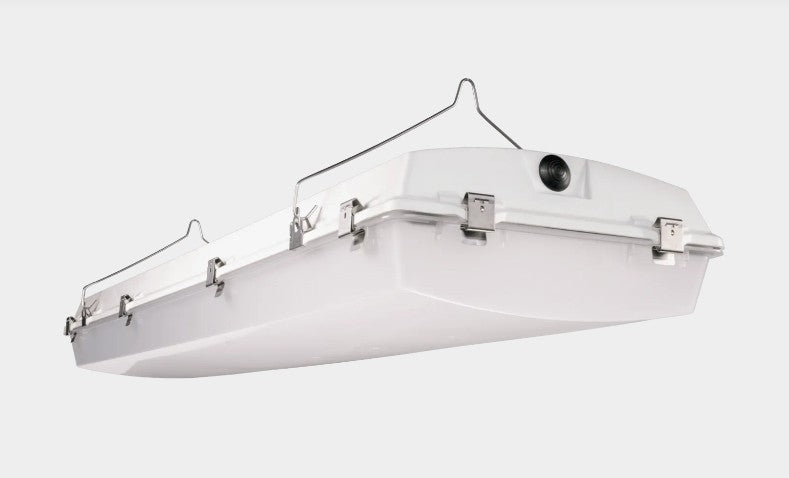

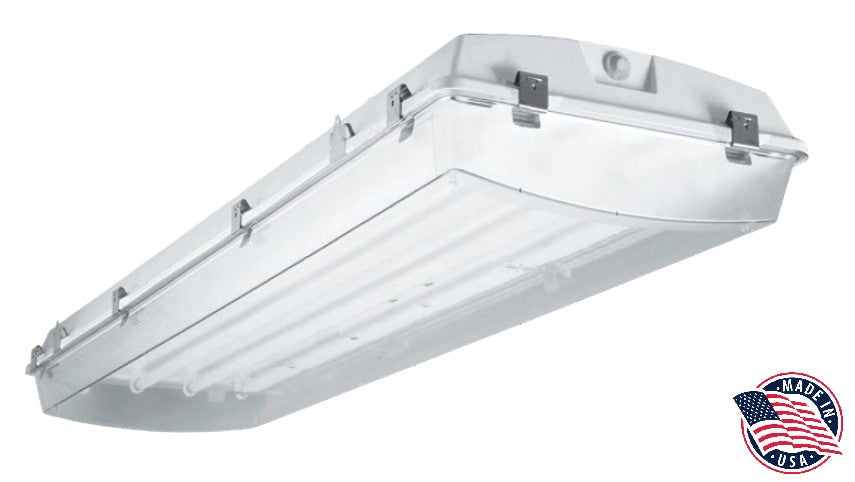

NHL-LWVT LED Wide Vaportight Series
- Product SKU: NHL-LWVT
- Category: High Bays & Low Bays, Interior, Made in America, Vapor Tight
Applications
• Food Processing Facilities
• Commercial Kitchens
• Breweries
• Industrial Facilities
• Livestock Contamination Buildings
• Parking Garages
• Under Awnings
• Laundries
• Utility Tunnels
• Car Washes
Applications
• Food Processing Facilities
• Commercial Kitchens
• Breweries
• Industrial Facilities
• Livestock Contamination Buildings
• Parking Garages
• Under Awnings
• Laundries
• Utility Tunnels
• Car Washes
- Housing: UL 5VA fiberglass (will not melt or burn), UL approved for through wiring. UL f1 rated (suitable for exposure and immersion of water)
- Board & Driver Trays: LED boards are attached to a one-piece painted white steel tray. Tray securely snaps into stainless steel retractor clips, which are installed on the housing.
- Gasket: "Poured-in-place" closed cell polyurethane. Compression Recovery: 95%to 99%. Will not support fungal growth.
- Latch: Stainless steel with tamper-resistant capability.
- Optics: All lenses are injection molded. Optional stainless steel lens tethers (which connects the lens to the board tray) are available for ease of maintenance without the possibility of dropping the lens.
- Available in either clear or FR50 frost.
- Acrylic: 100% impact modified (similar to DR), non-yellowing. Best in areas with UV exposure. Clear Transmission: 93%. Frosted Transmission: 88%
- Polycarbonate: UV stabilized. Best in extreme temperature conditions (freezers/foundries). Clear Transmission: 89% Frosted Transmission: 82%
- Lens: Smooth, shallow profile.
