Surface Edgelit
Rated 3.5/5 based on 11 customer reviews

Surface Edgelit

Available: In Stock

The Recessed Edgelit series is the perfect exit for the applications where you need something a little more appealing than a standard exit sign. Designed to have the housing recessed into a hard or grid ceiling, the finished result is a clean and functional exit sign perfect for your office, school, or retail location.

Download Product PDF

Accessories

Mounting:

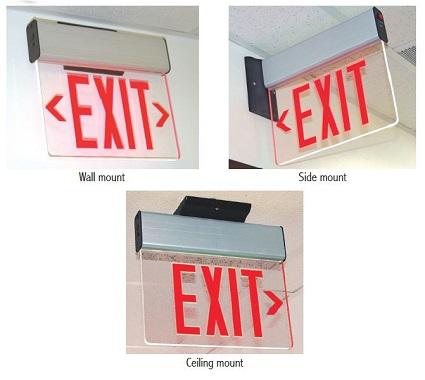

  • Aluminum mounting canopy included for top, end or back mount.

Housing:

  • Premium-grade, extruded aluminum housing (also available in black or white powder-coated finishes).
  • Self-adhesive Chevron appliques and guide template provided for directional indication.

Options:

  • SDT: Self-diagnostic test feature performs monthly, biannually, and annually tests to ensure reliable operation and to meet electrical and life safety codes.
  • 2C: Dual-circuit option on the AC-only unit enables it to be connected to two different (one acting as a back-up to the other) supplies at the same time.
  • Custom: Signs available with requested ‘special’ wording.
  • USA: Substantial transformation assembly in the U.S. complies with “Assembled in the USA” under the Buy American Act.

Warranty / Listing:

  • Five year warranty on all electronics and housing. Battery pro-rated for five years.
  • Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
  • UL listed for damp locations. (0°C – 50°C)

Accessories

Mounting:

  • Aluminum mounting canopy included for top, end or back mount.

Housing:

  • Premium-grade, extruded aluminum housing (also available in black or white powder-coated finishes).
  • Self-adhesive Chevron appliques and guide template provided for directional indication.

Options:

  • SDT: Self-diagnostic test feature performs monthly, biannually, and annually tests to ensure reliable operation and to meet electrical and life safety codes.
  • 2C: Dual-circuit option on the AC-only unit enables it to be connected to two different (one acting as a back-up to the other) supplies at the same time.
  • Custom: Signs available with requested ‘special’ wording.
  • USA: Substantial transformation assembly in the U.S. complies with “Assembled in the USA” under the Buy American Act.

Warranty / Listing:

  • Five year warranty on all electronics and housing. Battery pro-rated for five years.
  • Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
  • UL listed for damp locations. (0°C – 50°C)

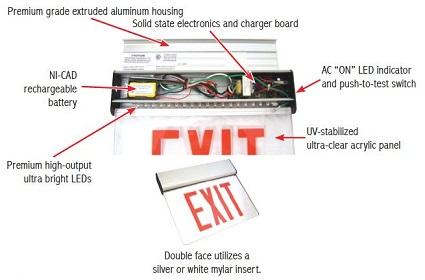

Illumination:

  • Ultra-bright, energy efficient, long-life Red or Green LED.
  • UV-stabilized ultra-clear acrylic edgelit panel provides consistent, uniform illumination.
  • Double face utilizes factory installed silver or white mylar background panel.

Electrical:

  • Dual 120/277 voltage.
  • Charge rate power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
  • 4.8V long life, maintenance-free, rechargeable NiCd battery.
  • Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
  • Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
