NHL-FLE

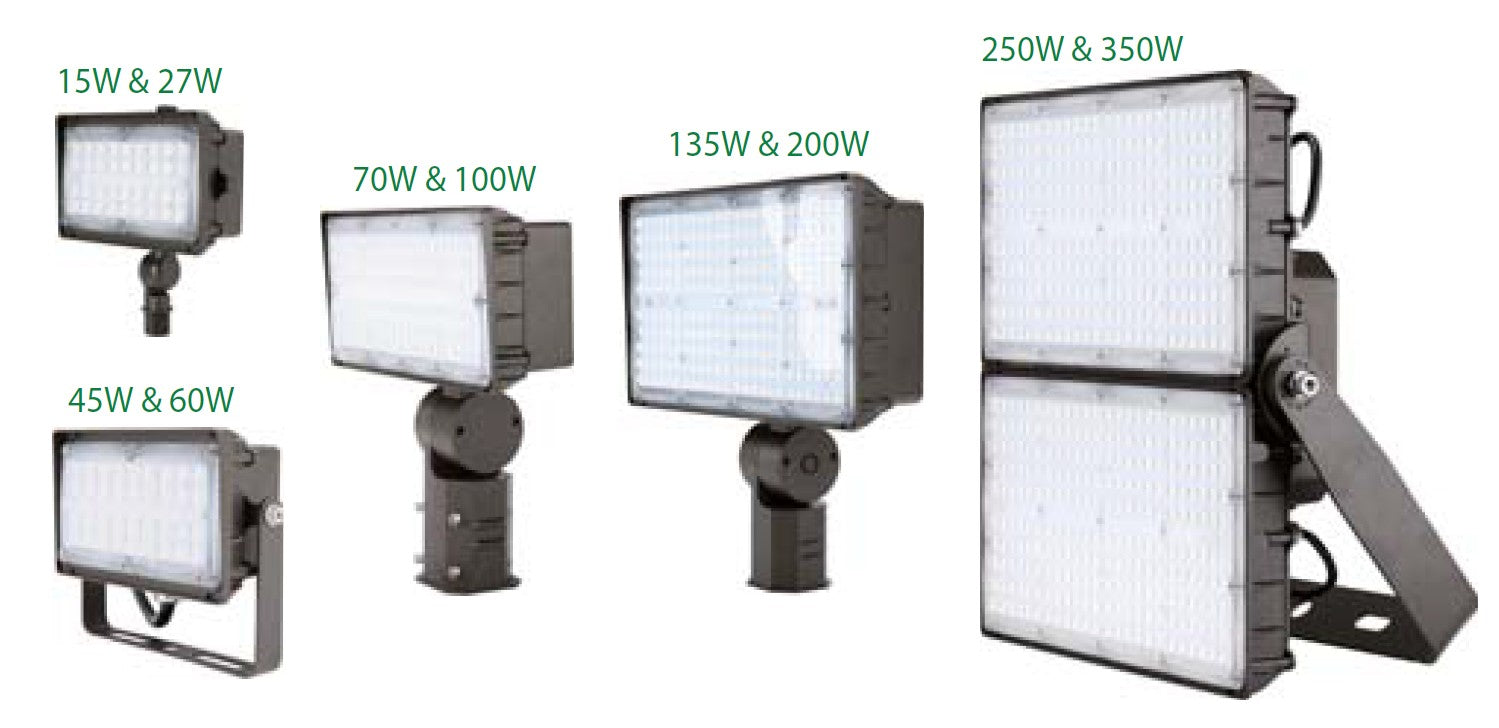

The NHL-FLE luminaire is a high-performance LED lighting solution designed with optical versatility and a slim, low-profile design. Its rugged cast aluminum housing minimizes wind load requirements and features an integral, watertight LED driver compartment and high-performance aluminum heat sinks. Perfect for use in include parking lots, walkways, campuses, car dealerships, office complexes, internal roadways, general area lighting and economical sports lighting.
- Product SKU: NHL-FLE
- Category: Contractor Choice, Floods, Outdoor
Construction
· Housing, electrical compartment, and fitter are all made from die-cast aluminum that is pre-treated and powder-coated to meet the most rugged industry standards.
· Door frame features an integral accessory channel for the mounting of optional light control accessories.
· Vented housing isolates LED module from the driver, maximizing product life and performance
· Door frame seals to housing with a continuous extruded silicone gasket.
Optics

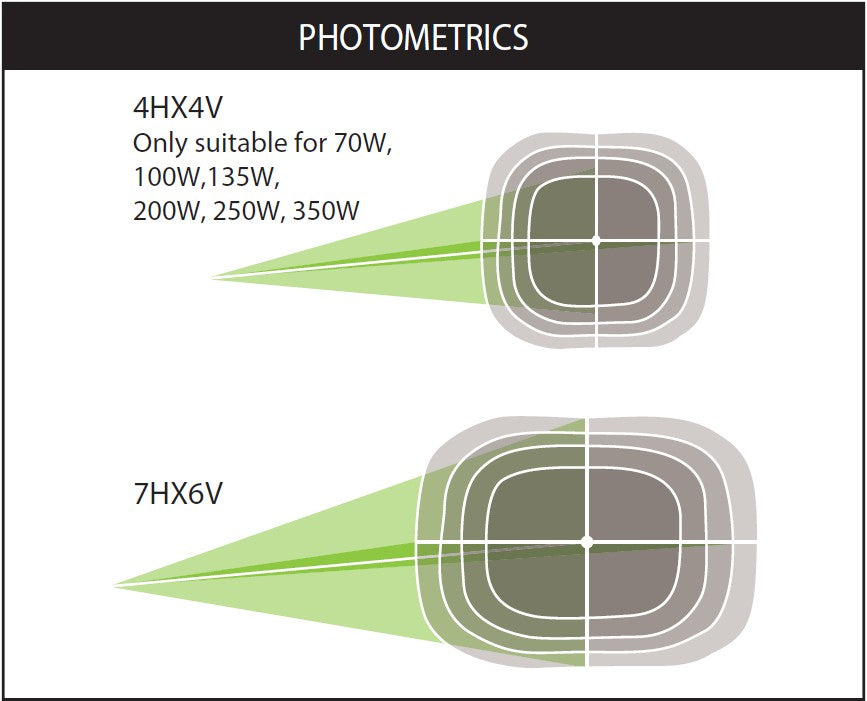

· Optics(NEMA Type): 7H*6V, 4Hx4V.
· Scalable Lumen Packages from 1,950 to 50,000 Lumens.
· Provides the best combination of vertical and horizontal illumination while reducing light behind the poles.
· High performance acrylic optic securely attached to internal heat sink for maximum thermal dissipation.
Electrical
· Universal 120-277 VAC or 347-480 VAC input voltage.
· Both drivers have a power factor >90%, THD <20%, and an expected life of 100,000 hours.
· Operating Temperature Range: -40°C - + 40°C (-40°F - + 104°F)
Lifespan
· Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
Warranty
· Five-year limited warranty.
Certifications
· DesignLights Consortium Qualified.
· UL cUL wet location listed.
Construction
· Housing, electrical compartment, and fitter are all made from die-cast aluminum that is pre-treated and powder-coated to meet the most rugged industry standards.
· Door frame features an integral accessory channel for the mounting of optional light control accessories.
· Vented housing isolates LED module from the driver, maximizing product life and performance
· Door frame seals to housing with a continuous extruded silicone gasket.
Optics
· Optics(NEMA Type): 7H*6V, 4Hx4V.
· Scalable Lumen Packages from 1,950 to 50,000 Lumens.
· Provides the best combination of vertical and horizontal illumination while reducing light behind the poles.
· High performance acrylic optic securely attached to internal heat sink for maximum thermal dissipation.
Electrical
· Universal 120-277 VAC or 347-480 VAC input voltage.
· Both drivers have a power factor >90%, THD <20%, and an expected life of 100,000 hours.
· Operating Temperature Range: -40°C - + 40°C (-40°F - + 104°F)
Lifespan
· Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
Warranty
· Five-year limited warranty.
Certifications
· DesignLights Consortium Qualified.
· UL cUL wet location listed.
