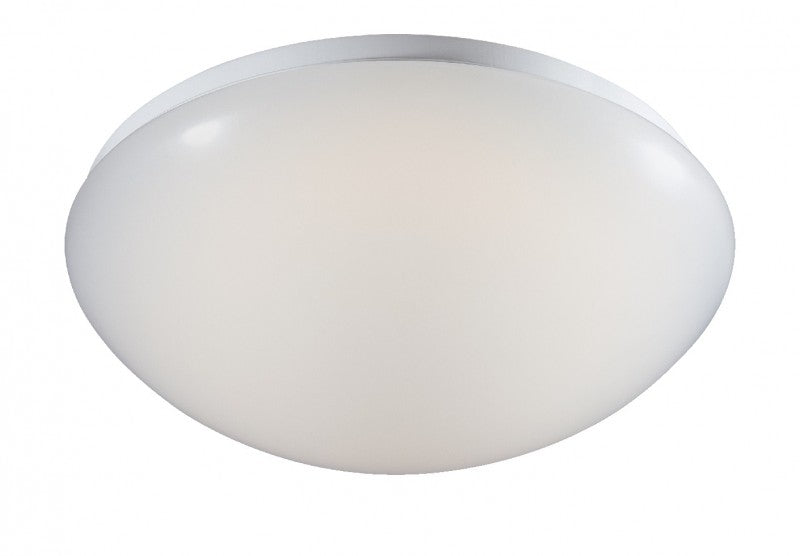

LEDR11 & LEDR14 Ceiling Lights
The LED round (LEDR) ceiling series is designed for residential, light commerial and other applications. High-quality luminaire utilizes the latest LED technologyfor optimal performance and maximized energy efficiency. High-CRI LEDs are standard and dimming is available with many popular wall dimmers. The finely-textured lens is molded from acrylic and provides an even, uniform light distribution.
- Product SKU: NHL-LEDR11, NHL-LEDR14
- Category: Interior, Surface Mount Ceiling
Specifications
- Available in 2700k (warm white) or 4000k (neutral white) color temperature.*
- Long-life LEDs provide at least 74,000 hours of operation with at least 70% of initial lumen output (L70).**
- 11” model delivers lumen output equivalent to one 75 watt incandescent lamp, but uses only 15 watts.*
- Delivered Lumens: 27K-1,050Lum / 4K-1,050Lum
- High-efficiency, non-glare lens provides visual comfort and uniform illumination without pixelation.
- Input voltage: AC120V,60Hz.
- Compatible with many popular wallbox dimmers.
- Power factor > 0.99. Total harmonic distortion < 20%. Color rendering index > 80.
- Sturdy steel body construction. Lens material is acrylic.
- Easy installation in new construction or retrofit.
- * Contact factory for other color temperatures and lumen packages.
- ** L70 hours are IES TM-21-11 calculated hours.
- cULus listed for damp and dry locations in ambient temperatures ranging from -20 C to 35 C / -4 F to 95 F.
- Energy Star qualified. Complies with FCC Part 15.
- Driver is protected from line transients (2.5 kV).
- 5-year warranty of all electronics and housing.
Specifications
- Available in 2700k (warm white) or 4000k (neutral white) color temperature.*
- Long-life LEDs provide at least 74,000 hours of operation with at least 70% of initial lumen output (L70).**
- 11” model delivers lumen output equivalent to one 75 watt incandescent lamp, but uses only 15 watts.*
- Delivered Lumens: 27K-1,050Lum / 4K-1,050Lum
- High-efficiency, non-glare lens provides visual comfort and uniform illumination without pixelation.
- Input voltage: AC120V,60Hz.
- Compatible with many popular wallbox dimmers.
- Power factor > 0.99. Total harmonic distortion < 20%. Color rendering index > 80.
- Sturdy steel body construction. Lens material is acrylic.
- Easy installation in new construction or retrofit.
- * Contact factory for other color temperatures and lumen packages.
- ** L70 hours are IES TM-21-11 calculated hours.
- cULus listed for damp and dry locations in ambient temperatures ranging from -20 C to 35 C / -4 F to 95 F.
- Energy Star qualified. Complies with FCC Part 15.
- Driver is protected from line transients (2.5 kV).
- 5-year warranty of all electronics and housing.
- Available in 2700k (warm white) or 4000k (neutral white) color temperature.
- Long-life LEDs provide at least 74,000 hours of operation with at least 70% of initial lumen output (L70).
- 14” model delivers lumen output equivalent to two 60 watt incandescent lamps, but uses only 24 watts.
- High-efficiency, non-glare lens provides visual comfort and uniform illumination without pixelation.
- Input voltage: AC120V,60Hz.
- Compatible with many popular wallbox dimmers.
- Power factor > 0.99.
- Total harmonic distortion < 20%.
- Color rendering index > 80.
- Sturdy steel body construction. Lens material is acrylic.
- Easy installation in new construction or retrofit.
- cULus listed for damp and dry locations in ambient temperatures ranging from -20° C to 35° C / -4° F to 95° F.
- Energy Star qualified. Complies with FCC Part 15.
- Driver is protected from line transients (2.5 kV).
- 5-year warranty of all electronics and housing.
