KH25
Rated 3.5/5 based on 11 customer reviews

KH25

Available: In Stock

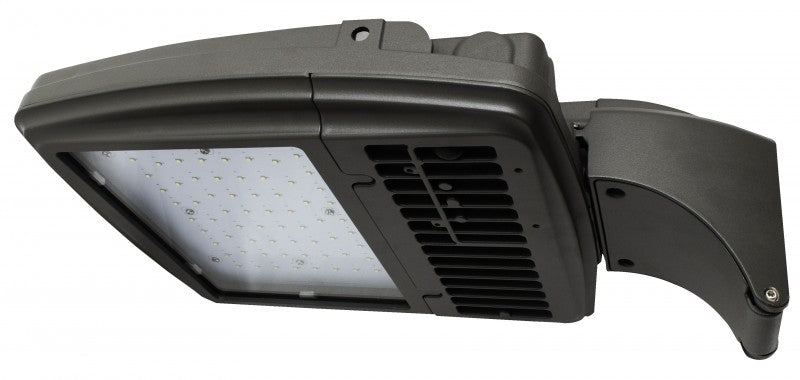

The KH25 luminaire is available in two wattages with a wide choice of mounting configurations and optical distributions designed to replace HID lighting systems from 150w to 400w MH or HPS. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 14 to 25 feet can be used based on light level and uniformity requirements.

Download Product PDF

Accessories:
  • 2.5KV Surge Protection
  • Battery Backup
  • Custom Colors Available Upon Request.
Accessories:
  • 2.5KV Surge Protection
  • Battery Backup
  • Custom Colors Available Upon Request.

Housing: Housing: Die Cast Aluminum Housing and Front Frame, Integral Heat Sinking and Driver Compartment. Photocell Adaptable. Nickel-Plated Stainless Steel Hardware.

Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750 IP66 Sealed LED Compartment.

Finish : Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens: Tempered Clear Flat Glass Lens or Tempered Clear Flat Prismatic Glass Lens.

Mounting Options: Mounts with Kitty Hawk Arm, Adjustable Slipfitter, 23 /8˝ Diameter Mounting Arm Adapter, Yoke, Two-Piece Bracket or Easy Hang Wall Bracket (Factory Installed).

EasyLED LED: Aluminum Boards

Wattage: 81w: Array: 80.5w, System: 86.6w; (150-250w HID Equivalent.) 112w: Array: 111.5w, System: 119.9w (250-400w HID Equivalent.)

Driver: Electronic Driver, 120-277V, 50/60Hz or 347/480V, 50/60Hz; Dimmable Driver.

Warranty: 5-Year Warranty for -40°C to +50°C Environment.

Lifespan: 81w-429,000-hour LED Lifespan 112w-320,000-hour LED Lifespan. Based on L70 Calculations
