DCVT Die Cast Vapor Tight Series
Rated 3.5/5 based on 11 customer reviews

DCVT Die Cast Vapor Tight Series

Available: In Stock

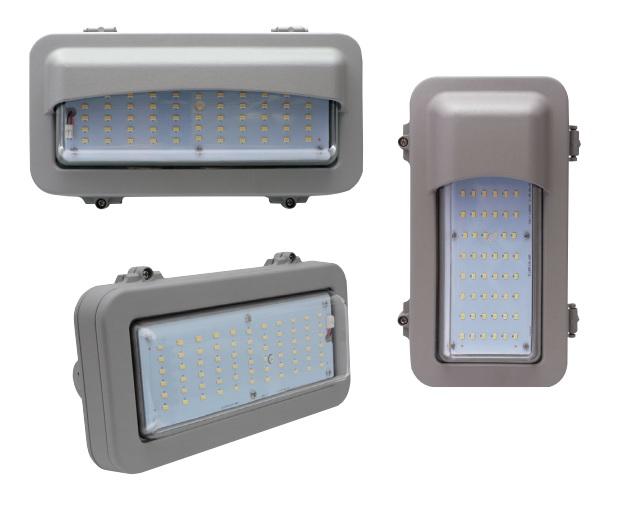

The NHL-DCVT series wall, pendant and ceiling mount luminaire is available with clear or LumaLens lenses, and open, vertical half or horizontal half door frames designed to replace HID lighting systems from 70w to 175w MH or HPS. Typical lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. NSF certification meets the requirements for Food Processing Facilities. Mounting heights of 8 to 18 feet can be used based on light level and uniformity requirements.

Download DCVT PDF

Applications:

Typical lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.

Applications:

Typical lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.

  • Housing: Heavy-Duty Die Cast Aluminum Housing and Top Frame. Can Be Tapped for Side Conduit Entry
  • Finish: Gray Powder Coat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request
  • Lens: Clear Polycarbonate Vandal-Resistant Lens or LumaLens Opal Polycarbonate VandalResistant Lens
  • Mounting Options: Surface Mount or Use Optional Quick-Mount Bracket
  • EasyLED LED: Aluminum Boards Wattage: Array: 22w, System: 26.4w (70w HID Equivalent) Array: 37.2w, System: 43.4w (175w HID Equivalent)
  • Driver: Electronic Driver, 120-277V, 50/60Hz; Dimmable Driver Listing & Ratings: CSA: Listed for Wet Locations. Operating Temperatures: -40°C to +50°C IP66

5-Year Warranty.
