Die Cast Aluminum Exit
Rated 3.5/5 based on 11 customer reviews

Die Cast Aluminum Exit

Available: In Stock

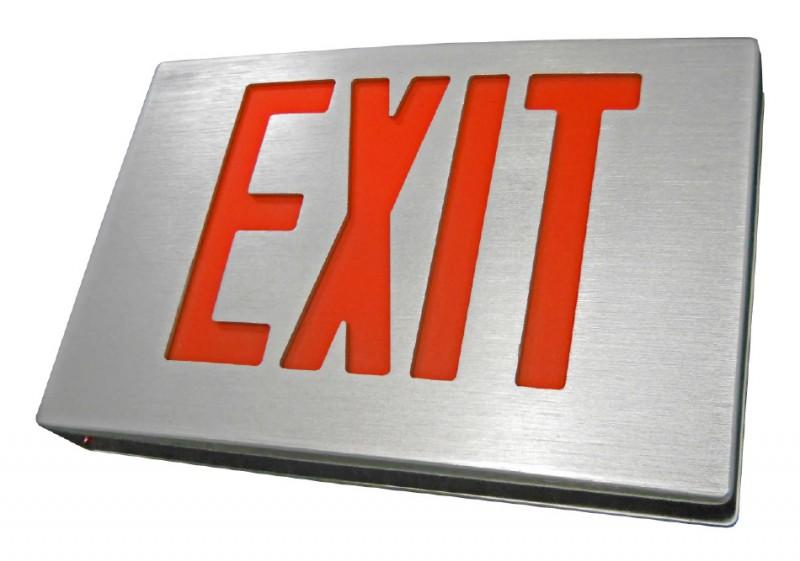

The DCE series is perfect for area where you need something a little more than the standard thermoplastic exit. Constructed with a Die Cast Aluminum Housing, the DCE is available with six or eight inch letters and optional Self Diagnostic Testing.

Download Product PDF

Accessories

Mounting:

  • Aluminum mounting canopy included for top or end mount.
  • Universal K/O pattern on back plate for wall mount.

Options:

  • TP: Tamper-proof hardware helps prevent unauthorized access to the unit.
  • SDT: Self-diagnostic test feature performs monthly, biannually, and annually tests to ensure reliable operation and to meet electrical and life safety codes.
  • 2C: Dual-circuit option on the AC-only unit enables it to be connected to two different (one acting as a back-up to the other) supplies at the same time.
  • USA: Substantial transformation assembly in the U.S. complies with “AssembLED in the USA” under the Buy American Act.
  • Optional 8 inch letters for NY Approval

Housing:

  • Premium-grade, aluminum housing (also available in black or white powder-coated finishes).
  • Field selectable knockout Chevron directional indicators.
  • Unique design allows double face conversion in the field.
  • Quick-snap face plate closure.

Accessories

Mounting:

  • Aluminum mounting canopy included for top or end mount.
  • Universal K/O pattern on back plate for wall mount.

Options:

  • TP: Tamper-proof hardware helps prevent unauthorized access to the unit.
  • SDT: Self-diagnostic test feature performs monthly, biannually, and annually tests to ensure reliable operation and to meet electrical and life safety codes.
  • 2C: Dual-circuit option on the AC-only unit enables it to be connected to two different (one acting as a back-up to the other) supplies at the same time.
  • USA: Substantial transformation assembly in the U.S. complies with “AssembLED in the USA” under the Buy American Act.
  • Optional 8 inch letters for NY Approval

Housing:

  • Premium-grade, aluminum housing (also available in black or white powder-coated finishes).
  • Field selectable knockout Chevron directional indicators.
  • Unique design allows double face conversion in the field.
  • Quick-snap face plate closure.

Illumination:

  • Ultra-bright, energy efficient, long-life Red or Green LED.

Electrical:

  • Ultra-bright, energy efficient, long-life Red or Green LED.

Electrical

  • Dual 120/277 voltage.
  • Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
  • 4.8V long life maintenance-free, rechargeable NiCd battery.
  • Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
  • Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Warranty / Listing:

  • Five year warranty on all electronics and housing. Battery pro-rated for five years.
  • Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
  • UL listed for damp locations. (0°C – 50°C)
