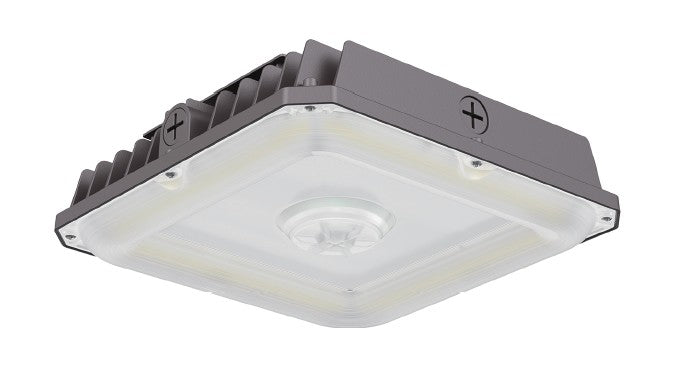

NHL-ECLP5
The ECLP5 is a economical LED square canopy that is watteg and CCT selctable. Optional easy to install motion sensor or photocell for increased energy savings, and featuring a high impact polycarbonate lens and durable die cast housing with a tough powdercaot finish. Perfect for parkign garages, exterior canopies, outdoor aisles, walkways and entryways.
FEATURES AND SPECIFICATIONS
Construction
Lens Material: polycarbonate. Housing: Die-cast aluminum. Finish colors: black/white/brown
Electrical
Working Voltage 120-277V 50/60Hz. Operating Temperature Range: -30 C to + 50 C. Note: Operating with emergency battery temperature range: 5 C to 45 C (+41 F to +113 F)
Performance
IP Rating: IP65. Sensor: Microwave motion sensor/PIR sensor photocell. THD: <20%. Power Factor: > 0.95 High efficacy up to 135LM/W. Life Time >50,000Hrs. Surge Protection: LN-PG :5KV, L-N:4KV
Applications
Parking garages, Canopies, Storage areas, Outdoor aisles, Walkways, Entryways.
Installation
Pendant mounting, surface mounting.
Listing
UL Listed. Design Lights Consortium (DLC) Premium.
Warranty
5-year limited warranty.
FEATURES AND SPECIFICATIONS
Construction
Lens Material: polycarbonate. Housing: Die-cast aluminum. Finish colors: black/white/brown
Electrical
Working Voltage 120-277V 50/60Hz. Operating Temperature Range: -30 C to + 50 C. Note: Operating with emergency battery temperature range: 5 C to 45 C (+41 F to +113 F)
Performance
IP Rating: IP65. Sensor: Microwave motion sensor/PIR sensor photocell. THD: <20%. Power Factor: > 0.95 High efficacy up to 135LM/W. Life Time >50,000Hrs. Surge Protection: LN-PG :5KV, L-N:4KV
Applications
Parking garages, Canopies, Storage areas, Outdoor aisles, Walkways, Entryways.
Installation
Pendant mounting, surface mounting.
Listing
UL Listed. Design Lights Consortium (DLC) Premium.
Warranty
5-year limited warranty.
