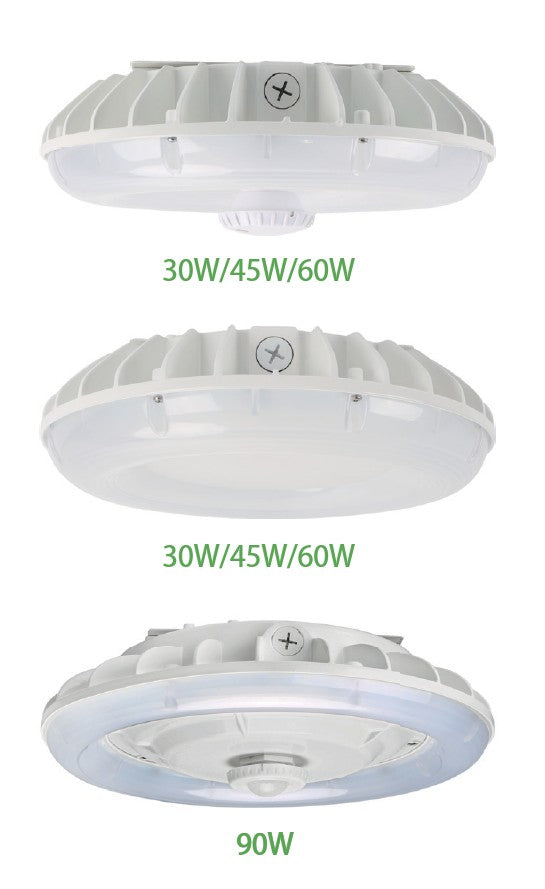

NHL-ECLP4
The ECLP4 series is a round, commercial grade LED canopy luminaire that utilizes high powered LEDs with precise efficient optical control and is wattage CCT selectable. It provides excellent uniformity, energy efficiency and control for surface mount applications. Pendant and junction box mounting options also available, as well as optional motion sensor for increased energy savings. The housing features a corrosion-resistant powder coating that provides protection and architectural appearance while adapting well to the environment. Optional Parking Garage Photometry or Low Bay Photometry to meet your lighting needs and ensure proper coverage for all parking garages, loading docks, exterior walkways and entryways.
Construction
Sealed die-casting profile for indoor and outdoor applications. Casting thermally conducts LED heat to optimize performance and long life. With corrosion-resistant powder coating that provides protection and architectural appearance while adapting well to the environment in the garage.
Optics
Lumen output from 3500-12300lm with efficacy up to 137lm/w. Switchable color temperature 4000K or 5000K. Optional Parking Garage Photometry or Low Bay Photometry as per applications. Replacing 100W MH and 175W MH.
Electrical
Universal 120-277V & 347V input voltage. Standard 0-10V dimming. Both drivers have a power factor >90%, THD <20%. Operating temperature is -40°C to 45°C(-40°F to 113°F).
Lifespan
Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Controls
Optional Motion sensor. Optional Emergency Battery.
Warranty
Five-year warranty.
Certifications
Design Lights Consortium Qualified. UL cUL wet location listed.
Construction
Sealed die-casting profile for indoor and outdoor applications. Casting thermally conducts LED heat to optimize performance and long life. With corrosion-resistant powder coating that provides protection and architectural appearance while adapting well to the environment in the garage.
Optics
Lumen output from 3500-12300lm with efficacy up to 137lm/w. Switchable color temperature 4000K or 5000K. Optional Parking Garage Photometry or Low Bay Photometry as per applications. Replacing 100W MH and 175W MH.
Electrical
Universal 120-277V & 347V input voltage. Standard 0-10V dimming. Both drivers have a power factor >90%, THD <20%. Operating temperature is -40°C to 45°C(-40°F to 113°F).
Lifespan
Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Controls
Optional Motion sensor. Optional Emergency Battery.
Warranty
Five-year warranty.
Certifications
Design Lights Consortium Qualified. UL cUL wet location listed.
