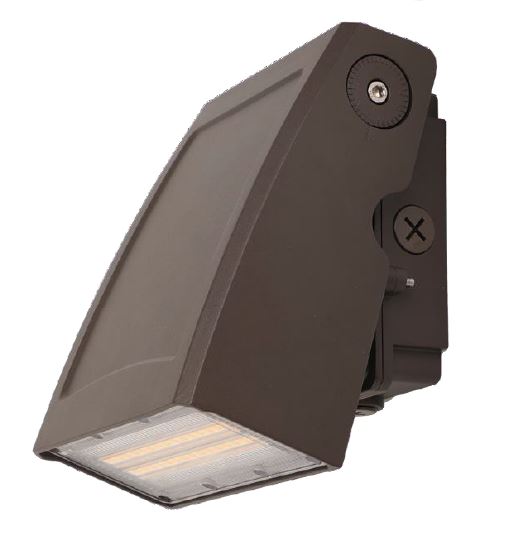

NHL-AWP3
Replacing metal halide fixtures with the AWP3 LED wall pack increases energy efficiency and lowers maintenance costs. Rugged die-cast aluminum housing providing heat dissipation, while durable PC lens is UV-stabilized to withstand the harsh conditions of outdoor industrial or commercial locations.
- Product SKU: NHL-AWP3
- Category: Outdoor, Wall Mount Exterior
Product Features:
Aesthetic, utility appearance, and patented;
Optically designed PC cover, almost no dark macula, which makes the whole lamp emit light
evenly and meets the requirements of DLC Premium 5.1;
Adopt high light transmission and anti-UV PC lampshade.
Low-voltage light control sensor can be installed, which is safe and reliable.
Power and CCT selective are available to meet the different needs of customers.
Easy and fast installation, and traditional junction box installation method is retained.
Standard respirator extends the service life of lamps.
IP65, completely waterproof and dustproof.
Adjustable angle from 0-90°
120-277V / 0-10V and 120-347V / 277V-480V,0-10V dimming power supply are available.
Product Features:
Aesthetic, utility appearance, and patented;
Optically designed PC cover, almost no dark macula, which makes the whole lamp emit light
evenly and meets the requirements of DLC Premium 5.1;
Adopt high light transmission and anti-UV PC lampshade.
Low-voltage light control sensor can be installed, which is safe and reliable.
Power and CCT selective are available to meet the different needs of customers.
Easy and fast installation, and traditional junction box installation method is retained.
Standard respirator extends the service life of lamps.
IP65, completely waterproof and dustproof.
Adjustable angle from 0-90°
120-277V / 0-10V and 120-347V / 277V-480V,0-10V dimming power supply are available.
