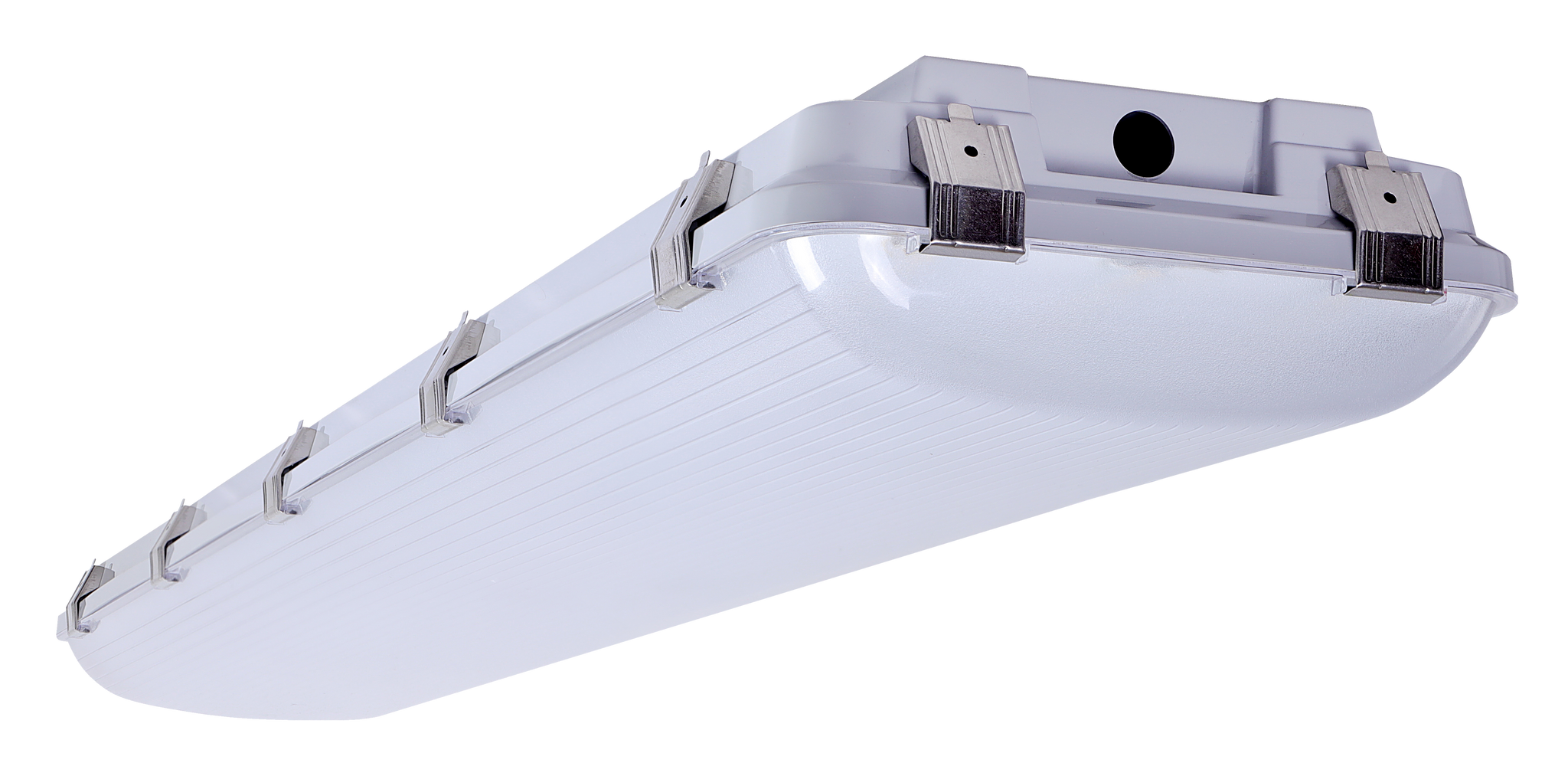

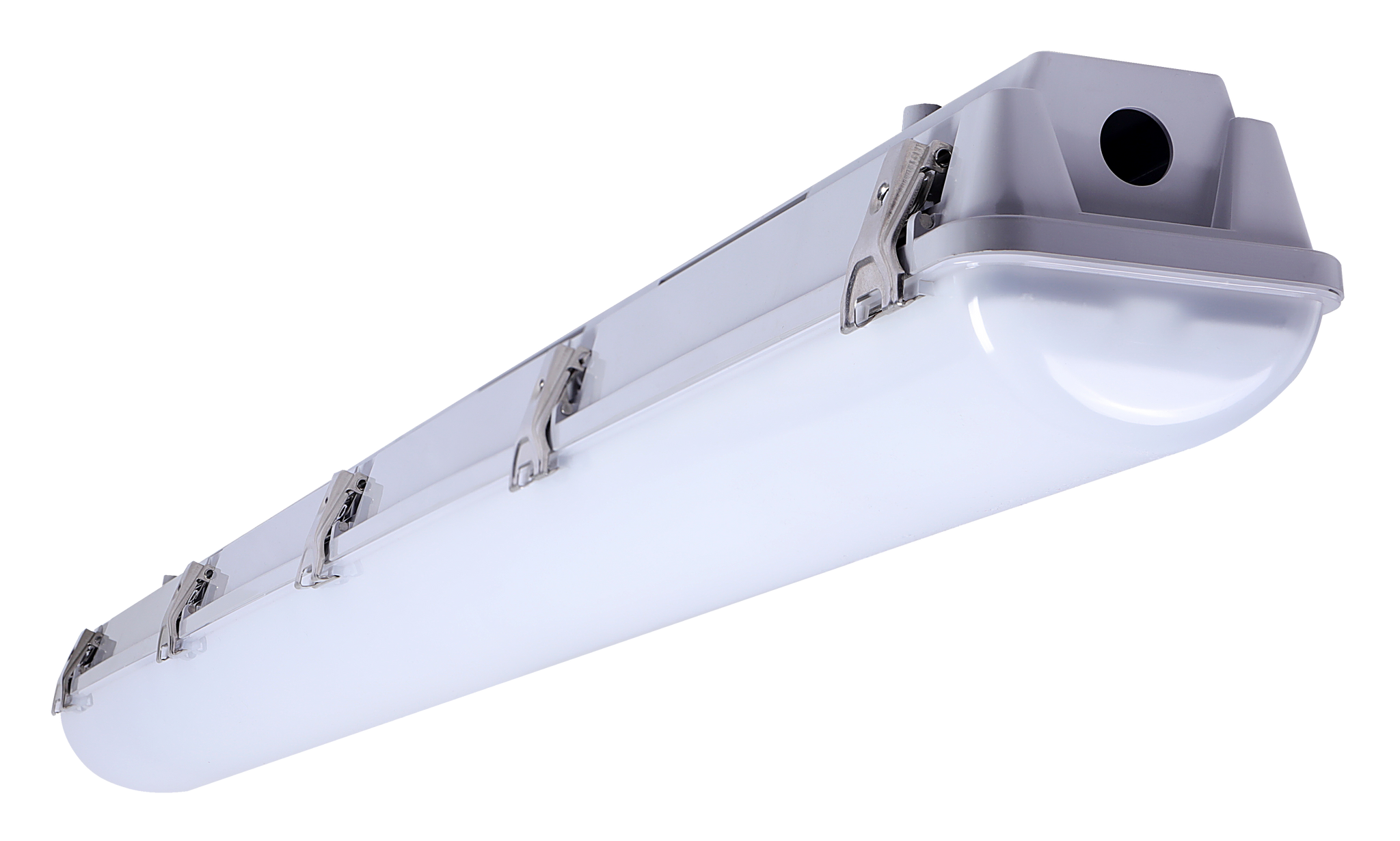

LWVT2 Series Vapor Tight
- Category: Vapor Tight
- Food Processing Facilities
- Commercial Kitchens
- Breweries
- Industrial Facilities
- Livestock Containment Buildings
- Parking Garages
- Under Awnings
- Laundries
- Utility Tunnels
- Car Washes
- Food Processing Facilities
- Commercial Kitchens
- Breweries
- Industrial Facilities
- Livestock Containment Buildings
- Parking Garages
- Under Awnings
- Laundries
- Utility Tunnels
- Car Washes
▪ Field selectable color temperatures include 3500k, 4000k and 5000k.
▪ Long-life LEDs provide 137,000 hours of operation with at least 70% of initial lumen output (L70), and 42,000 hours with at least 90% of initial lumen output (L90).
▪ LED chromaticity based on < 5-step ANSI quadrangles.
▪ LED color maintenance < 0.002 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
▪ Provides 6,000, 14,000, or 20,000 nominal lumens using 42, 100, or 150 nominal watts.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ 0-10vdc dimming drivers are standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Polycarbonate housing and frosted lenses are standard.
▪ Easy installation in new construction or retrofit. ▪ 5-year warranty of all electronics and housing.
