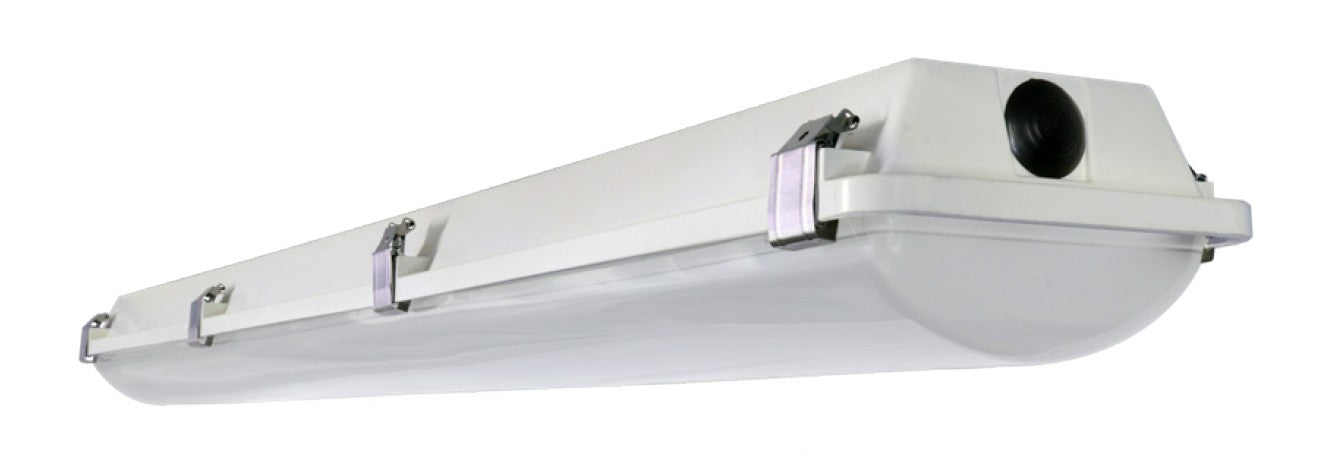

NHL-LVTS2
The NHL-LVTS2 two foot Vapor Tight Linear LED Light is engineered for the harshest environments. Constructed from impact-resistant fiberglass with a poured-in-place gasket, this fixture is Made in the USA, BAA & BAB compliant and achieves IP65, IP66, IP67, and NEMA 4X ratings to withstand moisture, dust, and high-pressure washdowns. NSF certified for food processing, it delivers reliable performance in freezers, parking garages, chemical plants, and manufacturing facilities where durability isn’t optional. Also a good choice for dirty and dusty environments like sawmills, horse barns, carwashes, stone and tile cutting facilities and outdoor areas.
- Product SKU: NHL-LVTS2
- Category: Interior, Surface Mount Ceiling, Vapor Tight
Related items
The new and improved L600-2 is a modern and refined version of the standard Linear Pendant style light. The L600-2 comes in 4ft standard lengths, and is wattage and color selectable, as well as up/down selectable. With this great flexibility, it makes design choices easy to change and light up any space to the desired effect. The L600-2 can be cable hung, pendant mount, surface or recessed mount and wall mounted, allowing it to be used in a variety of ways on a job so you can keep the same consistent look throughout. Easy installation and a variety of joiners to achieve various styles of runs. Perfect for corporate offices and conference rooms, classrooms, lecture halls, lobbies, showrooms, retail centers, and hotels.
The LED Round (LEDR) and LED Square (LEDS) ceiling series is designed for residential, light commercial and other applications. Both units come standard with field CCT selectability, making it easy to choose the right color temperature for your needs. High-quality luminaire utilizes the latest LED technology for optimal performance and maximum energy efficiency. High-CRI LEDs are standard and dimming is available with many popular wall dimmers. The finely-textured lens is molded from acrylic and provides an even, uniform light distribution.
The WLE3E is an economy style wrap fixture, but with added features. Both CCT and Wattage selectable, this fixture also features a poly carbonate lens and steel housing. Perfect for new construction or retrofits.
PRODUCT FEATURES
▪ Field selectable 3500k (warm/neutral white), 4000k (neutral
white), and 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 196,000 hours of operation with at least
70% of initial lumen output (L70), and 60,000 hours with at least
90% of initial lumen output (L90).**
▪ LED chromaticity based on < 4-step ANSI quadrangles.
▪ LED color maintenance < 0.002 chromaticity shift (Δu’v’) over
the initial 6,000 hours of operation.
▪ WLE3 provides a range of 4,100 to 5,800 nominal lumens and
132 to 154 lumens per watt (LPW).*
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ 0-10vdc dimming drivers are standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Steel housing and PMMA lens.
▪ Optional emergency drivers and occupancy sensors are
available.
▪ Easy installation in new construction or retrofit.
