LED Edgelit
Rated 3.5/5 based on 11 customer reviews

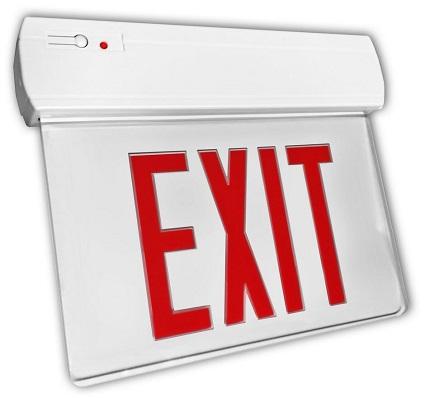

LED Edgelit

Available: In Stock

The ESED is our economical version of our Surface Mount Edgelit. Built with an all plastic housing, this exit sign is price right and performs well. The ESED is a good alternative where sticking to budget is crucial, but you need something a little more attractive than a standard exit sign.

Download Product PDF

Accessories

Mounting:

  • Polycarbonate mounting canopy included for top or end mount.
  • Universal K/O pattern on back plate for wall mount.

Warranty / Listing:

  • Five year warranty on all electronics and housing. Battery is pro-rated for five years.
  • UL listed for damp locations. (0°-50°C/32°-122°F standard)
  • Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes

Accessories

Mounting:

  • Polycarbonate mounting canopy included for top or end mount.
  • Universal K/O pattern on back plate for wall mount.

Warranty / Listing:

  • Five year warranty on all electronics and housing. Battery is pro-rated for five years.
  • UL listed for damp locations. (0°-50°C/32°-122°F standard)
  • Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes

Illumination:

  • Ultra-bright, energy efficient, long-life Red or Green LED.
  • UV-stabilized ultra-clear acrylic edgelit panel provides consistent, uniform illumination.
  • Double face utilizes factory installed silver or white mylar background panel.

Electrical:

  • Dual 120/277 voltage.
  • Charge rate power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
  • 4.8V long life, maintenance-free, rechargeable NiCd battery.
  • Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90 minute emergency illumination.
  • Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
