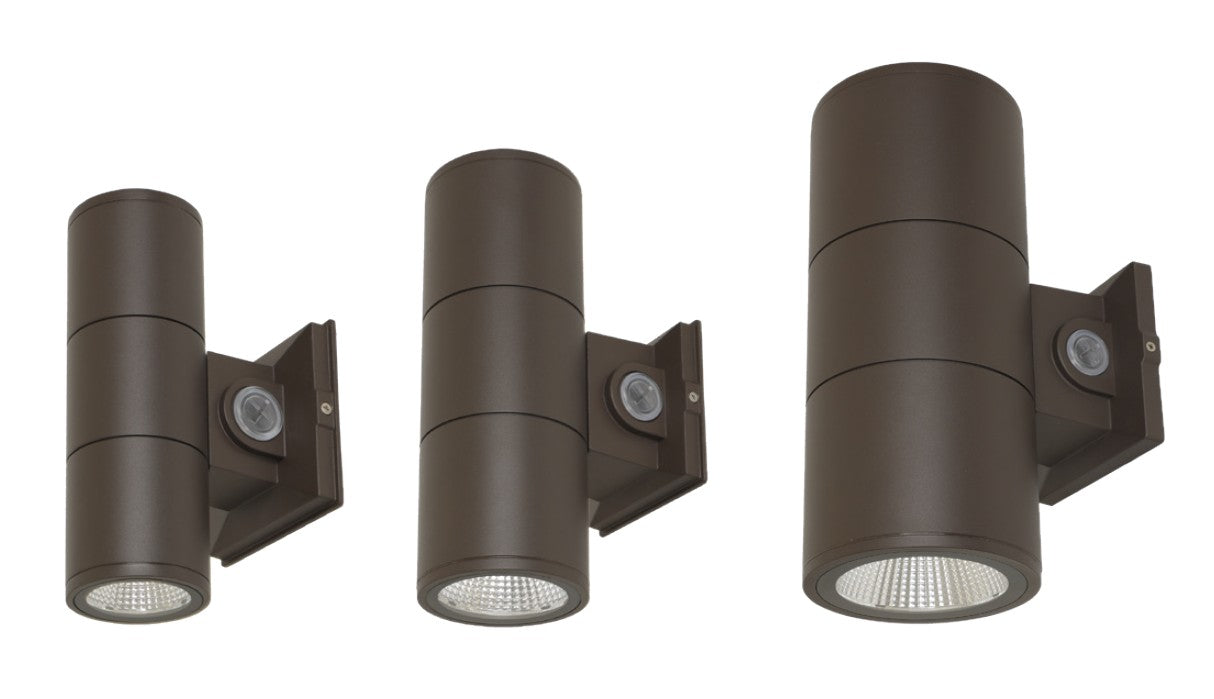

TBD2 Series - Up/Down/Full LED Wall Cylinder
The TBD2 cylinder sconce luminaire for outdoor applications is available in three sizes to fit almost any decorative lighting need. These are perfect for residential or commercial applications where a traditional look with modern aesthetics are needed. The TBD2 features filed selectable color, wattage, and the ability to have full up, full down, or up and down lighting, along with a built in photocell that can be turned off if desirable. Packed with these features, the TBD2 is sure to please and work well for you.
- Category: Decorative Site, Outdoor, Wall Mount Exterior
ELECTRICAL
• Operating temperature (ambient): -40°C to 45°C (-40°F to 113°F).
• Universal 120-277V AC voltage (50-60Hz) is standard.
• Field selectable output, with 3 levels for each model.
• 0-10VDC dimming drivers are standard.

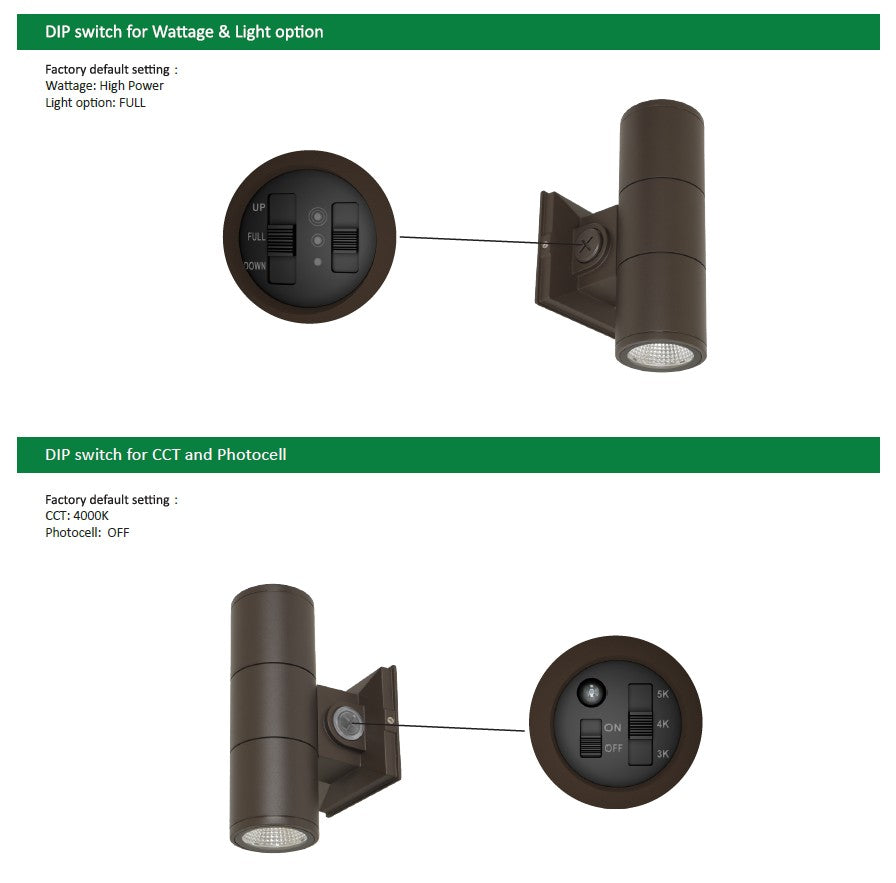

• Internal switch allows a choice of up only, down only, or both up and down.
• Internal photocell is standard. Photocell can be enabled or disabled by switch.
• Surge protection = 4kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.
HOUSING
• Premium powder-coat, aluminum, dark bronze housing.
OPTICAL SYSTEM
• High temperature resistant toughened glass lens.
• Field selectable 3000k(warm white), 4000k (neutral white) and 5000k (cool
white) color temperatures*.
• CYL-UPDN-976L-3CCT provides a range of 600 to 900 nominal lumens*.
• CYL-UPDN-201712L-3CCT provides a range of 1,200 to 2,000 nominal lumens*.
• CYL-UPDN-302722L-3CCT provides a range of 2,200 to 3,000 nominal lumens*.
• Long-life LEDs provide 140,000 hours of operation with at least 70% of initial
lumen output (L70)**.
• Beam angle 35°.
• LED color maintenance < 0.00342 chromaticity shift (Δu’v’) over the initial
6,000 hours of operation.
• Color rendering index > 90
MOUNTING
• Wall mount kit
• Easy installation in new construction or retrofit applications.
CODE COMPLIANCE
• cULus listed for wet locations.
• Complies with FCC part 15, class B.
• IP65 rated for ingress protection.
WARRANTY
• 5 year warranty on all electronics and housing
ELECTRICAL
• Operating temperature (ambient): -40°C to 45°C (-40°F to 113°F).
• Universal 120-277V AC voltage (50-60Hz) is standard.
• Field selectable output, with 3 levels for each model.
• 0-10VDC dimming drivers are standard.
• Internal switch allows a choice of up only, down only, or both up and down.
• Internal photocell is standard. Photocell can be enabled or disabled by switch.
• Surge protection = 4kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.
HOUSING
• Premium powder-coat, aluminum, dark bronze housing.
OPTICAL SYSTEM
• High temperature resistant toughened glass lens.
• Field selectable 3000k(warm white), 4000k (neutral white) and 5000k (cool
white) color temperatures*.
• CYL-UPDN-976L-3CCT provides a range of 600 to 900 nominal lumens*.
• CYL-UPDN-201712L-3CCT provides a range of 1,200 to 2,000 nominal lumens*.
• CYL-UPDN-302722L-3CCT provides a range of 2,200 to 3,000 nominal lumens*.
• Long-life LEDs provide 140,000 hours of operation with at least 70% of initial
lumen output (L70)**.
• Beam angle 35°.
• LED color maintenance < 0.00342 chromaticity shift (Δu’v’) over the initial
6,000 hours of operation.
• Color rendering index > 90
MOUNTING
• Wall mount kit
• Easy installation in new construction or retrofit applications.
CODE COMPLIANCE
• cULus listed for wet locations.
• Complies with FCC part 15, class B.
• IP65 rated for ingress protection.
WARRANTY
• 5 year warranty on all electronics and housing
