Decorative Series SAR
Rated 3.5/5 based on 11 customer reviews

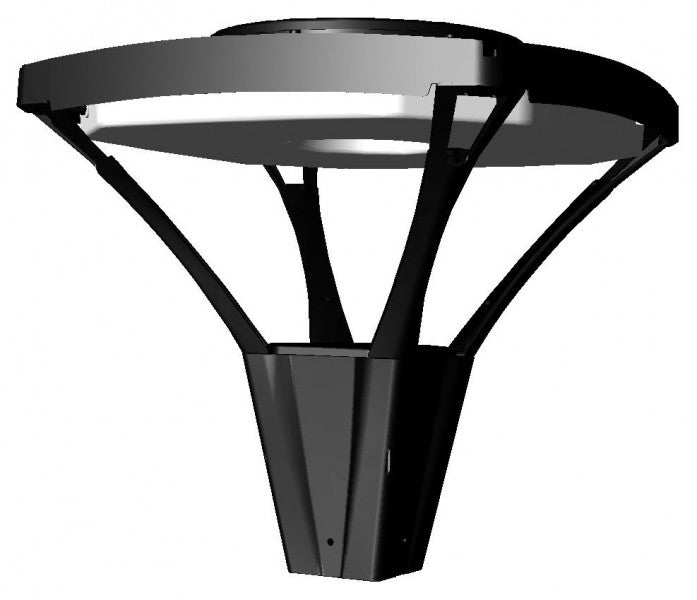

Decorative Series SAR

Available: In Stock
The NHL-SAR is available in a Type V distribution with two lens options designed to replace HID lighting systems up to 1000w MH or HPS. The fixture mounts to a pole top tenon. Typical area lighting applications include parking areas, walkways, and street lighting applications. Mounting heights of 12 to 30 feet can be used based on light level and uniformity requirements.

Download Product PDF

Applications:
  • Retail Centers
  • Schools & Universities
  • Office Buildings
  • Medical Facilities
  • Apartment & Condominiums
Accessories:
  • Surge Protection
  • Polycarbonate outer conical lens replacement
Applications:
  • Retail Centers
  • Schools & Universities
  • Office Buildings
  • Medical Facilities
  • Apartment & Condominiums
Accessories:
  • Surge Protection
  • Polycarbonate outer conical lens replacement

Housing: Die cast aluminum housing, integral heat sinking, black powdercoat finish over a chromate conversion coating. Photocell adaptable.

Lens: Clear or LumaLens opal inner lens to seal LED array.

Mounting: Accommodates 2 3/8 inch tenons

LED: Array Lumens: 24,553 Delivered Lumens: 18,883 (Clear Array Lens) CRI: 80+ CCT: 5000K Rated Life: 50,000 Hours 5-Year Warranty Aluminum Boards

Wattage: Array: 176w, System: 186w

Driver: Electronic Driver, 120-277V, 50/60Hz Dimmable Driver

Listings & Ratings: IP67 Operating Temperatures: -40°C to +40°C
