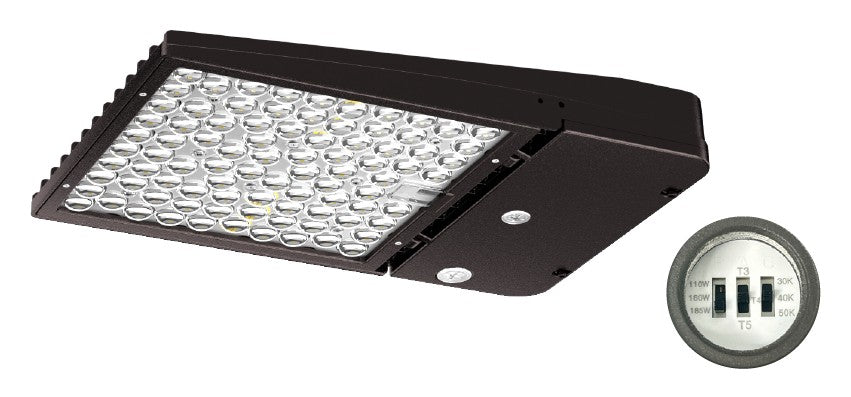

MULTI-PURPOSE LED AREA LIGHT (NHL-MMFL4 & LMFL4)
MULTI-PURPOSE LED AREA LIGHT - The MMFL4 & LMFL4 series is a group of architectural LED area luminaires designed to illuminate parking areas, pathways, building facades, loading docks, and a wide variety of other large, general site lighting applications. Multiple mounting options make the MMFL4 & LMFL4 a versatile luminaire for flood lighting, pole-, ground- and wall-mounted area lighting, and other outdoor lighting requirements.
- Category: Area Site Lighting (Street Lighting), Floods

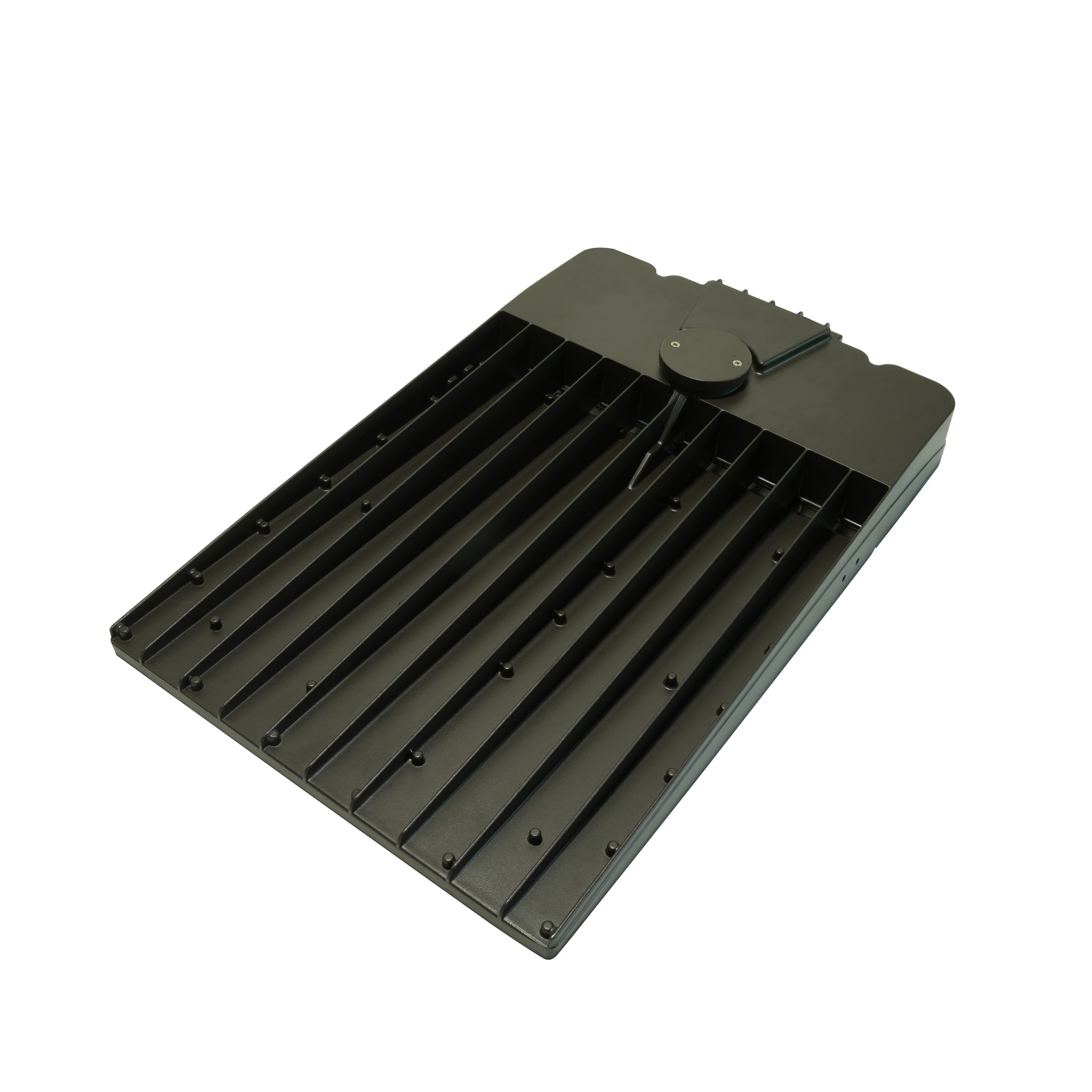

HOUSING
• Premium powder-coat, die cast aluminum, dark bronze housing.
ELECTRICAL
• Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F).
• Universal 120-277V AC voltage (50-60Hz) is standard.
• 0-10VDC dimming drivers are standard.
• Input transient surge protection = 6kV.
• Incoming AC power cord = 6’. Incoming dimming cord = 6’.
• Watertight, compression-type electrical connectors.
• Power factor > 90.
• Total harmonic distortion < 20%.
OPTICAL SYSTEM
• Polycarbonate lens.
• Field selectable 3000K (warm/neutral white), 4000K (neutral white) and 5000K
(cool white) color temperatures*.
• MPALDSR-242115L-3CCT Tri-lumen selectable provide a range of 15,381 to
26,687 nominal lumens*.

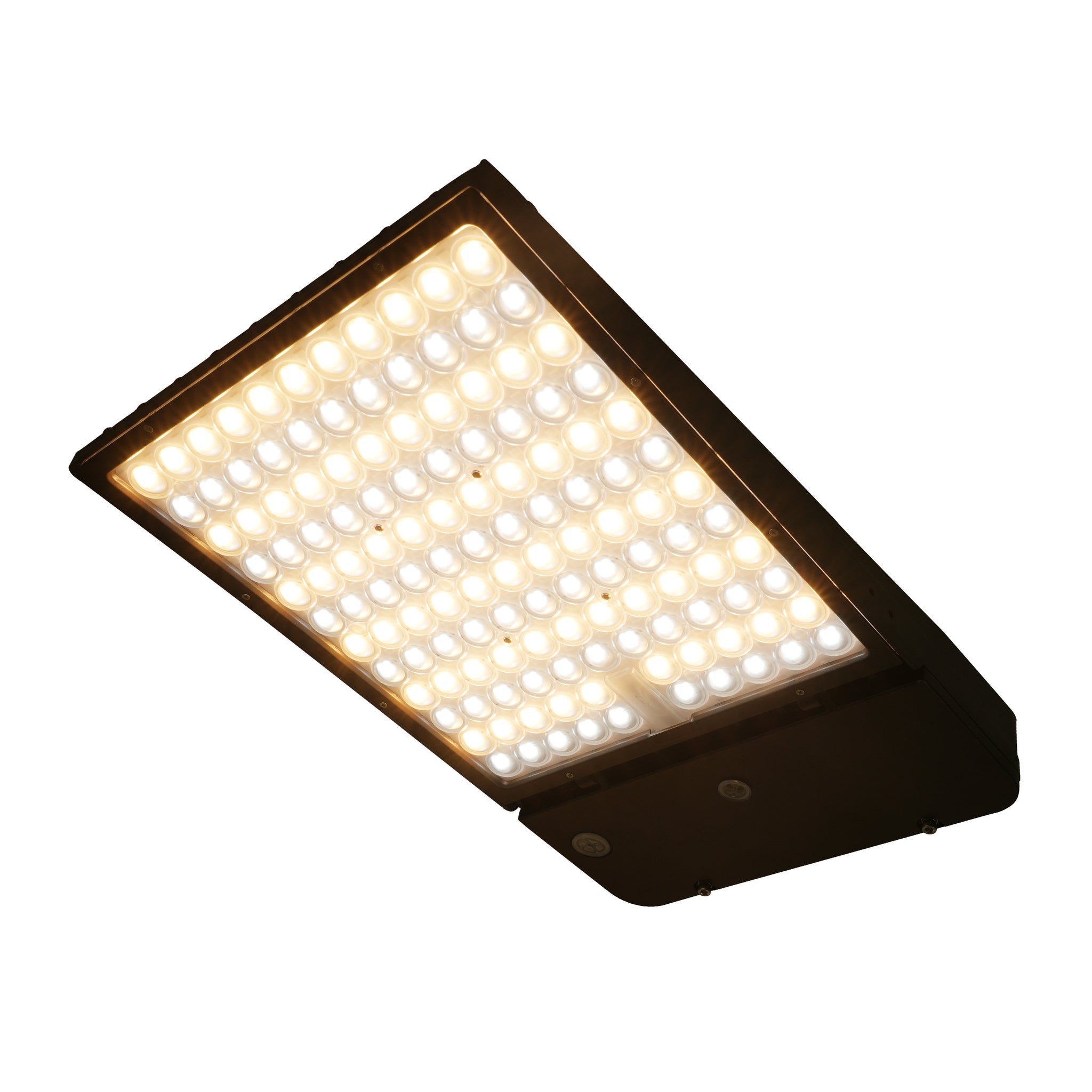

• MPALDSR-403530L-3CCT Tri-lumen selectable provide a range of 28,342 to
42,653 nominal lumens*.
• Long-life LEDs provide 167,000 hours of operation with at least 70% of initial
lumen output (L70), and 51,000 hours with at least 90% of initial lumen output
(L90)**.
• Distribution selectable. Standard optic provides type III / type IV / type V distribution.
Easy to configure with switch.
• Sensor-ready receptacle standard.
• Screw in sensor ready. Remote control required for programming (Sensor and
remote control sold separately).
• Available factory istalled NEMA photocell receptacle for 3-pin NEMA devices.
• LED color maintenance < -0.00495 chromaticity shift (Δu’v’) over the initial
6,000 hours of operation.
• Color rendering index > 80.

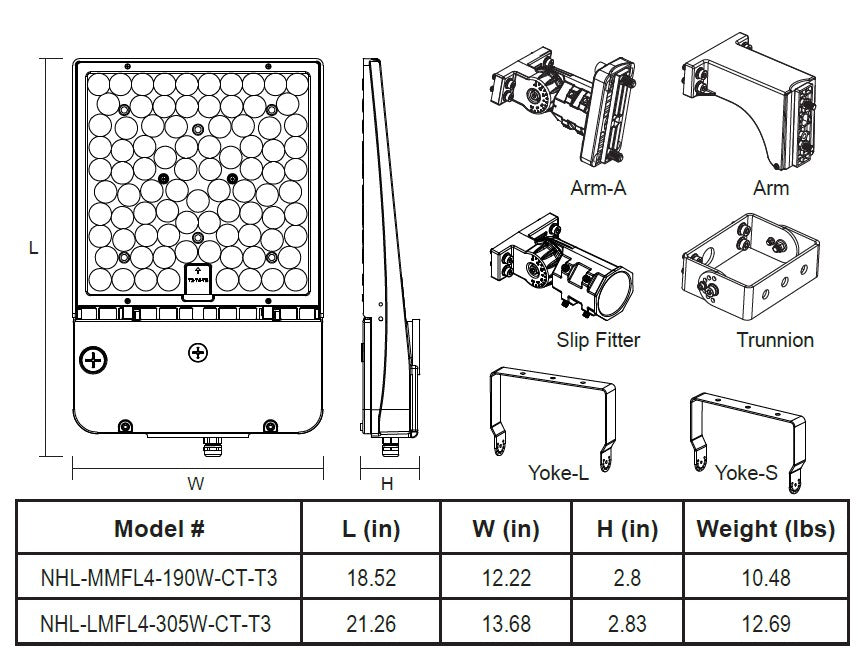

MOUNTING
• Optional Arm A Mounting kit (Arm and Slip-fitter combo).
• Optional Arm Mounting kit.
• Optional Slip-fitter Mounting kit.
• Optional Yoke Mounting kit.
• Optional Trunnion Mounting kit.
CODE COMPLIANCE
• cULus listed for wet locations.
• DLC premium listed.
• Complies with FCC part 15, class A.
• IP65 rated for ingress protection.
• IK08 rated for impact protection.
WARRANTY
• 5 year warranty on all electronics and housing.
HOUSING
• Premium powder-coat, die cast aluminum, dark bronze housing.
ELECTRICAL
• Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F).
• Universal 120-277V AC voltage (50-60Hz) is standard.
• 0-10VDC dimming drivers are standard.
• Input transient surge protection = 6kV.
• Incoming AC power cord = 6’. Incoming dimming cord = 6’.
• Watertight, compression-type electrical connectors.
• Power factor > 90.
• Total harmonic distortion < 20%.
OPTICAL SYSTEM
• Polycarbonate lens.
• Field selectable 3000K (warm/neutral white), 4000K (neutral white) and 5000K
(cool white) color temperatures*.
• MPALDSR-242115L-3CCT Tri-lumen selectable provide a range of 15,381 to
26,687 nominal lumens*.
• MPALDSR-403530L-3CCT Tri-lumen selectable provide a range of 28,342 to
42,653 nominal lumens*.
• Long-life LEDs provide 167,000 hours of operation with at least 70% of initial
lumen output (L70), and 51,000 hours with at least 90% of initial lumen output
(L90)**.
• Distribution selectable. Standard optic provides type III / type IV / type V distribution.
Easy to configure with switch.
• Sensor-ready receptacle standard.
• Screw in sensor ready. Remote control required for programming (Sensor and
remote control sold separately).
• Available factory istalled NEMA photocell receptacle for 3-pin NEMA devices.
• LED color maintenance < -0.00495 chromaticity shift (Δu’v’) over the initial
6,000 hours of operation.
• Color rendering index > 80.
MOUNTING
• Optional Arm A Mounting kit (Arm and Slip-fitter combo).
• Optional Arm Mounting kit.
• Optional Slip-fitter Mounting kit.
• Optional Yoke Mounting kit.
• Optional Trunnion Mounting kit.
CODE COMPLIANCE
• cULus listed for wet locations.
• DLC premium listed.
• Complies with FCC part 15, class A.
• IP65 rated for ingress protection.
• IK08 rated for impact protection.
WARRANTY
• 5 year warranty on all electronics and housing.
