LED Vaportight 2' & 4' Gasketed Enclosure
Rated 3.5/5 based on 11 customer reviews

LED Vaportight 2' & 4' Gasketed Enclosure

Available: In Stock

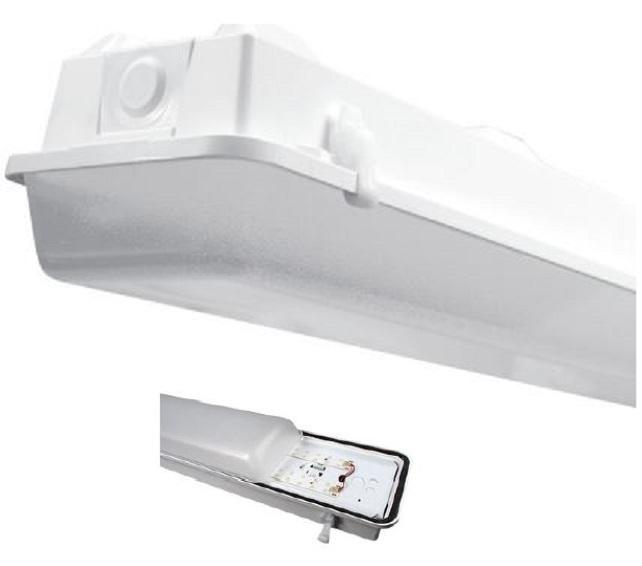

NHL-LVT LED combines the benefits of LED technology with the features OEMs have come to rely upon in the flagship Sentry series. NHL-LVT LED utilizes gear tray internal construction for cost effectiveness and functional practicality by minimizing required internal metal components. Drivers mount to the driver tray for thermal isolation. The NHL-LVT housing is sealed against dust and moisture and available in a variety of lens, latch, and wire-entry configurations.

Download Product PDF

Applications:

Ideal for use in dusty, dirty, or wet environments including food processing, cold storage, kitchens, parking garages, car washes, covered canopies, pedestrian tunnels, concourses, and industrial.

Accessories:

  • MB (Stainless Steel Mounting Bracket)
  • Stainless Steel Clips (Requires 6 per 4’ Section)
  • SR (Miro 4 Reflector) (Requires 1 per 4’ Section)
  • EM Ballast (1350 Lumen) Specify Voltage
  • ACH - Aircraft Cable Hanger
Certifications:
  • UL/cUL recognized
  • Wet Location listed
  • IP65 (Standard 6-latch configuration)
  • IP66 & IP67 (Optional 8-latch configuration)
  • 40° C ambient temperature rating when used with LGIT light engines.
  • NSF International certified for NSF/ ANSI Standard 2 – Food Equipment
Applications:

Ideal for use in dusty, dirty, or wet environments including food processing, cold storage, kitchens, parking garages, car washes, covered canopies, pedestrian tunnels, concourses, and industrial.

Accessories:

  • MB (Stainless Steel Mounting Bracket)
  • Stainless Steel Clips (Requires 6 per 4’ Section)
  • SR (Miro 4 Reflector) (Requires 1 per 4’ Section)
  • EM Ballast (1350 Lumen) Specify Voltage
  • ACH - Aircraft Cable Hanger
Certifications:
  • UL/cUL recognized
  • Wet Location listed
  • IP65 (Standard 6-latch configuration)
  • IP66 & IP67 (Optional 8-latch configuration)
  • 40° C ambient temperature rating when used with LGIT light engines.
  • NSF International certified for NSF/ ANSI Standard 2 – Food Equipment
  • Rigid one piece housing construction.
  • Standard 6-latch or optional 8-latch housings.
  • En-seal™ gasketing provides superior resistance to moisture absorption versus conventional gasketing.
  • Standard suitcase style latches.
  • Molded latch pockets compatible with standard and tamper-proof latches in Celcon, stainless steel, and polycarbonate.
  • LED Module tray available in models to accommodate either one or two rows of nominal 22” LED boards.
  • Gear trays secured to #10-32 brass studs molded into housing.
  • LED Module tray attaches to two plastic or steel TrayLats for easy, toolless removal.
  • LED Module tray suspends from housing by two security straps during servicing.
  • Housing: Compression molded self-extinguishing fiberglass reinforced polyester compound with UL 5V flame rating. F1 weatherability rating.
  • Gasketing: En-Seal ™ continuous perimeter poured gasket assures lens seal to housing.
  • Electrical Chassis Gear trays constructed of 83% reflective, 22-gauge, pre-painted steel.
  • Light Engine: 50 diode LED module available in 4000K from LGIT with 50,000 hour L70 life. Constant current drivers with 0-10V dimming and 120-277V input available from LGIT.
  • Conduit Entry Standard housings available with one 7/8” conduit entry point on either or both ends. Consult Sales for other opening sizes or for top openings.
  • Lens: Inline thermal-formed lenses available in tapered, shallow and deep profiles or crepe pattern acrylic, DR reinforced acrylic, frosted acrylic, or prismatic polycarbonate.
  • Optional stainless steel mounting brackets clip to housing for surface or all-thread pendant mounting. Consult Sales for chain or cable mounting or for housings with 1/4x28 external brass studs compatible with galvanized steel bracket for flush mounting.
  • Wattage & Lumen Output: 28W/48W/56W / 4020-6120 Lumens
