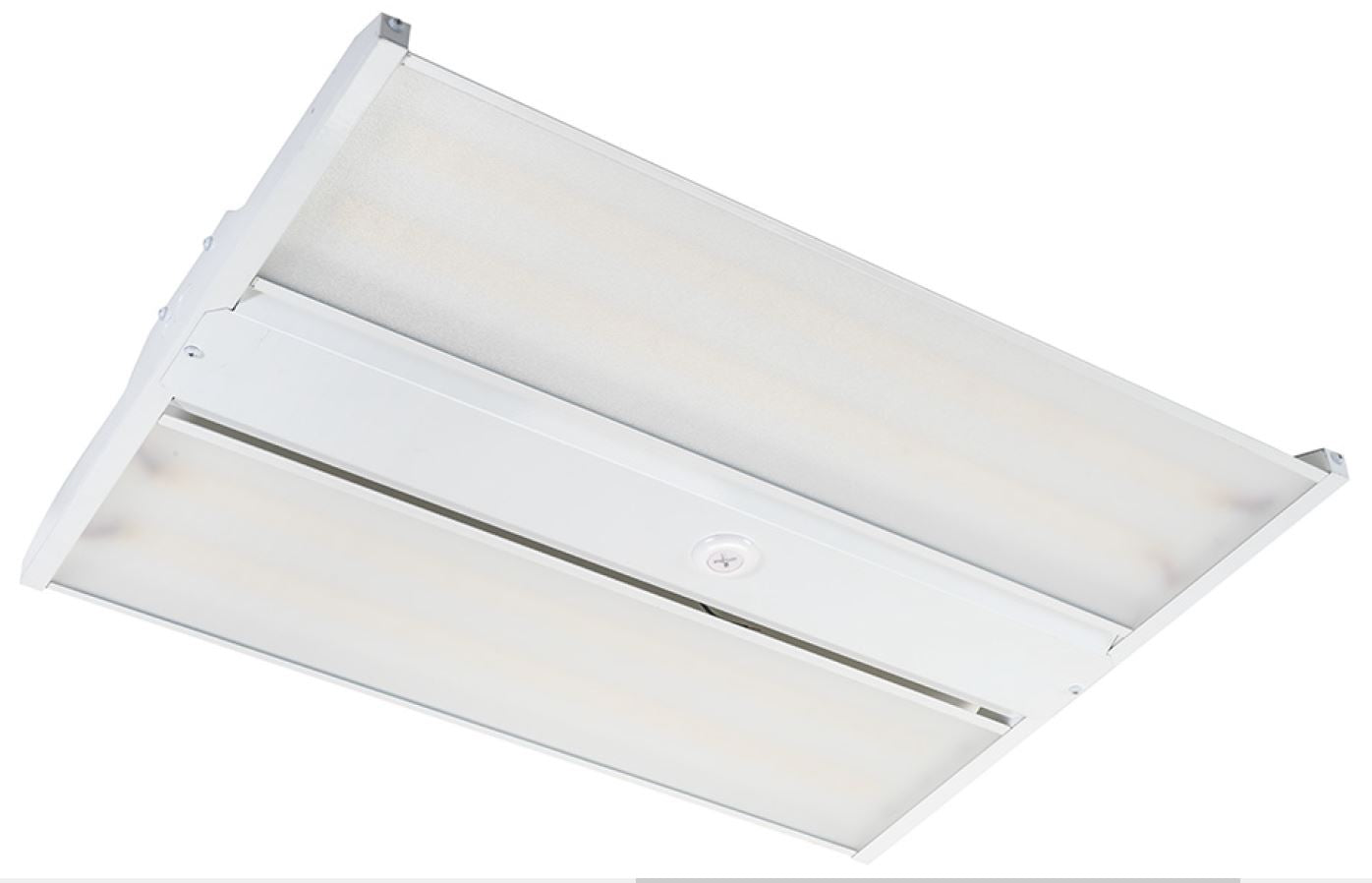

LHBF2 Series (80W, 90W, 115W, 155W, 185W, 230W, 270W, 420W)
With an architectural grade I-Beam design, the driver channel is spaced away from the LEDs allowing for better airflow and thermal management. This unique design contributes to a significantly longer lifespan while increasing efficiency to as high as 132 lm/W.
With a variety of accessories, you can get even more out of your LHBF2 High Bay fixture. A popular addition is our High Bay Occupancy Sensor , which New Horizon Lighting will factory install to save you time in the field. Take energy savings to the next level by not wasting energy illuminating an empty space. Never lose your high bay lighting when you really need it by attaching a factory installed emergency battery to the fixture. During a power outage, the emergency battery will ensure your lights remain on for a minimum of 90 minutes.
Download NHL-LHBF2 80W PDF Download NHL-LHBF2 90W PDF Download NHL-LHBF2 115W PDF Download NHL-LHBF2 155W PDF Download NHL-LHBF2 185W PDF Download NHL-LHBF2 230W PDF Download NHL-LHBF2 270W PDF Download NHL-LHBF2 420W PDF
- Product SKU: NHL-LHBF2
- Category: High Bays & Low Bays, Interior
- Chain mounting with V-hooks is standard.
- Optional surface mounting kit provides attachment to flat ceilings.
- Optional pendant mounting kit provides pendant attachment to junction boxes.
- Optional cable mounting kits provide suspension at two lengths.
DLR/CL - Door Frame Clear Lens
DLR/OP - Door Frame Opal Lens
WG - Wire Guard
SM - Surface Mount
PM - Pendant Mount
ACH - Aircraft Cable in either 60", 120" & 240"
- Chain mounting with V-hooks is standard.
- Optional surface mounting kit provides attachment to flat ceilings.
- Optional pendant mounting kit provides pendant attachment to junction boxes.
- Optional cable mounting kits provide suspension at two lengths.
DLR/CL - Door Frame Clear Lens
DLR/OP - Door Frame Opal Lens
WG - Wire Guard
SM - Surface Mount
PM - Pendant Mount
ACH - Aircraft Cable in either 60", 120" & 240"
Warranty & Listings
- cULus listed for damp locations in ambient temperatures from -20°C to 50°C (-4°F to 122°F).
- Complies with RoHS (Restriction on Hazardous Substances) requirements
- Complies with FCC Part 15, class A.
- Complies with IEEE C.62.41-1991, input transient protection (2.5kV).
- 5-year warranty of all electronics and housing.
Mounting Options
- Optional surface mounting kit provides attachment to flat ceilings.
- Optional pendant mounting kit provides pendant attachment to junction boxes.
- Optional aircraft cable mounting kits provide adjustable suspension in variuos lengths.
Specifications
Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
Universal 120-277 AC voltage (50-60Hz) is standard.
0-10vdc dimming drivers are standard.
Power factor > 0.90. Total harmonic distortion < 20%. Color rendering index > 80.
Painted steel housing. Easy installation in new construction or retrofit.
Options include lenses (clear & diffused), wire-guard kits surface-mounting kits, pendant-mounting kits, and cable- mounting kits
